DECKEL | Completely refurbished – good as new

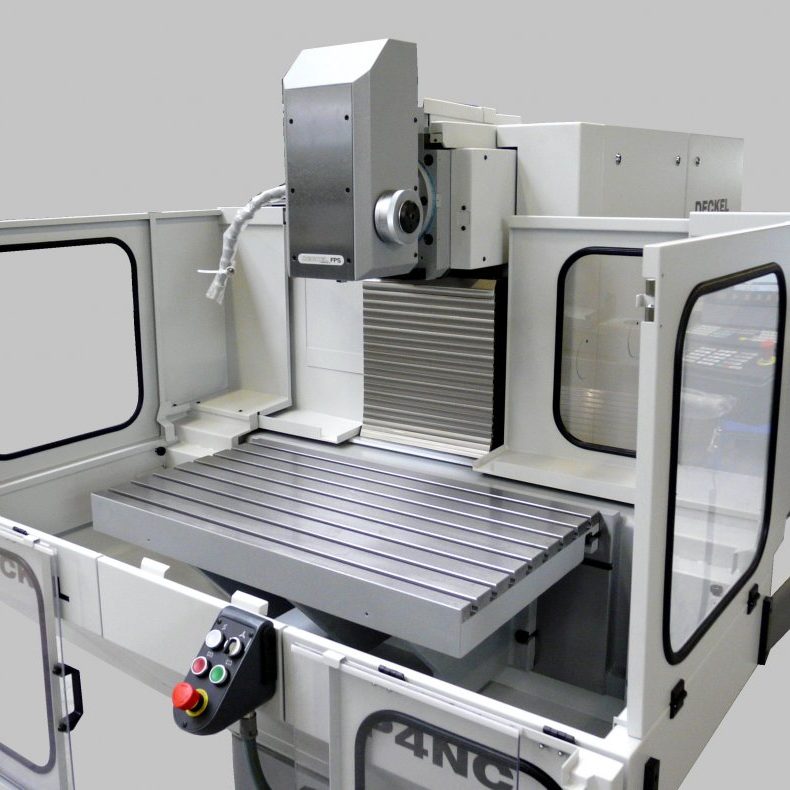

FP4 NC 2838 with CNC control

DECKEL Dialog 11 | HEIDENHAIN TNC 320 | SIEMENS 840 D SL

Vertical milling head as folding head

Technical data

Item conditionCompletely refurbished - as new
Item number4640 (DECKEL Dialog 11)
4650 (HEIDENHAIN TNC 320)
4660 (SIEMENS 840 D SL)
OperationCNC without control wheel
ControlDECKEL Dialog 11
HEIDENHAIN TNC 320
SIEMENS 840 D SL
Speed
31.5–5000 rpm, 2-stage gearbox, continuously variable programming
Feed rate2–6000 mm/min continuously variable
Rapid feed4000 mm/min
Power7.5 kW at 100% DC
Tail spindleVertical and horizontal 80 mm extending tail spindles, SK40 with DIN 2080 or DIN 69872 clamping system
AxesX/Y/Z 560/500/450 mm
Angle tableFixed table, 900 x 530 mm, max. load 450 kg
FPS - Standard
  • Completely refurbished machine, as new in terms of mechanics and electronics.
  • The control system, drive package and drive motors were completely renewed and brought up to date in the course of the complete refurbishment.

Specifications

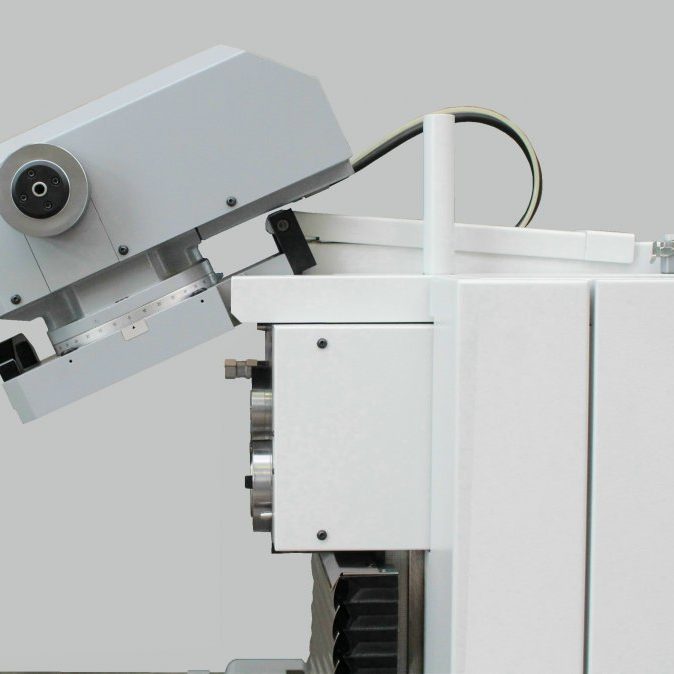

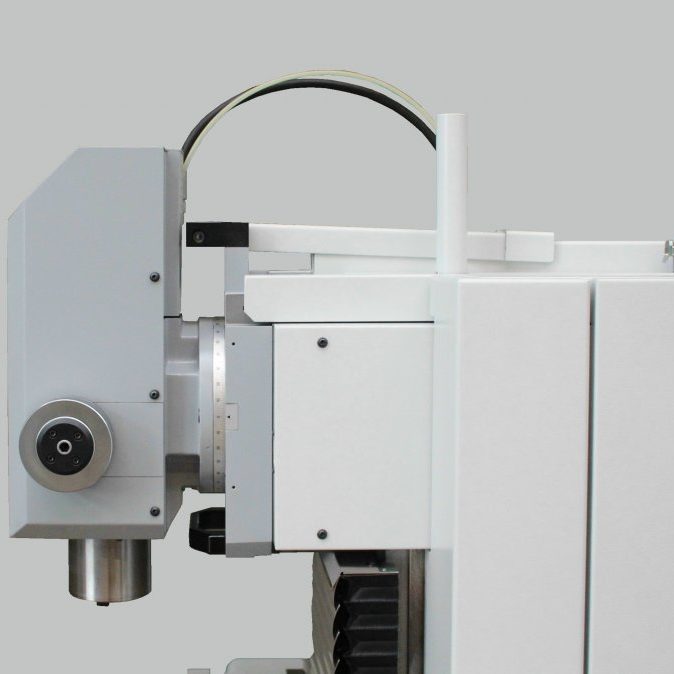

  • Vertical cutting head as folding head
  • Vertical and horizontal spindle

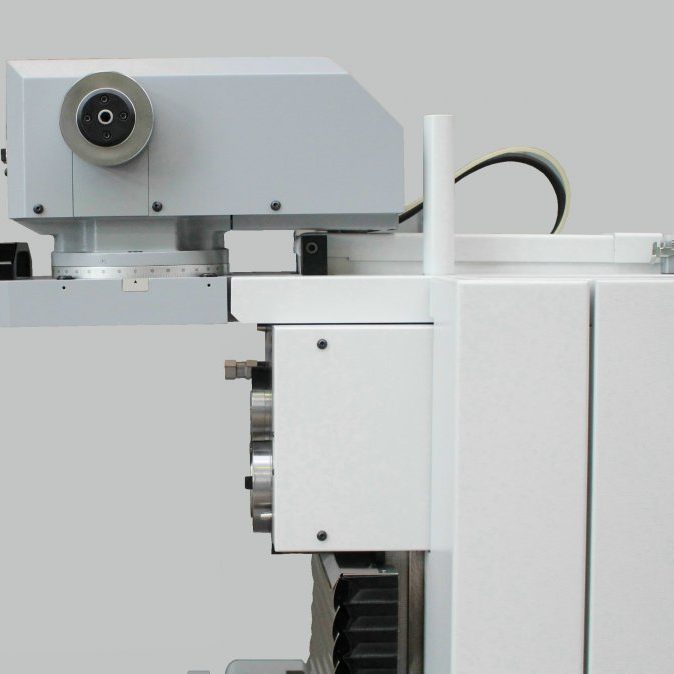

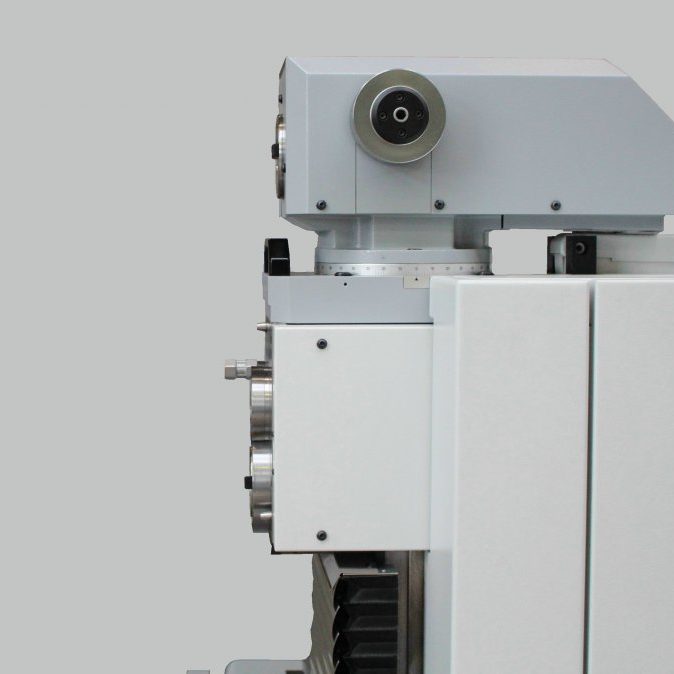

  • Manually swivelling milling head (+/- 90°)

Hydromechanical clamping system
  • SK40 with DIN 2080 or DIN 69872 tightening bolts

Programming:
  • Deckel Dialog 11 - Dialog-guided programming with versatile machining cycles.

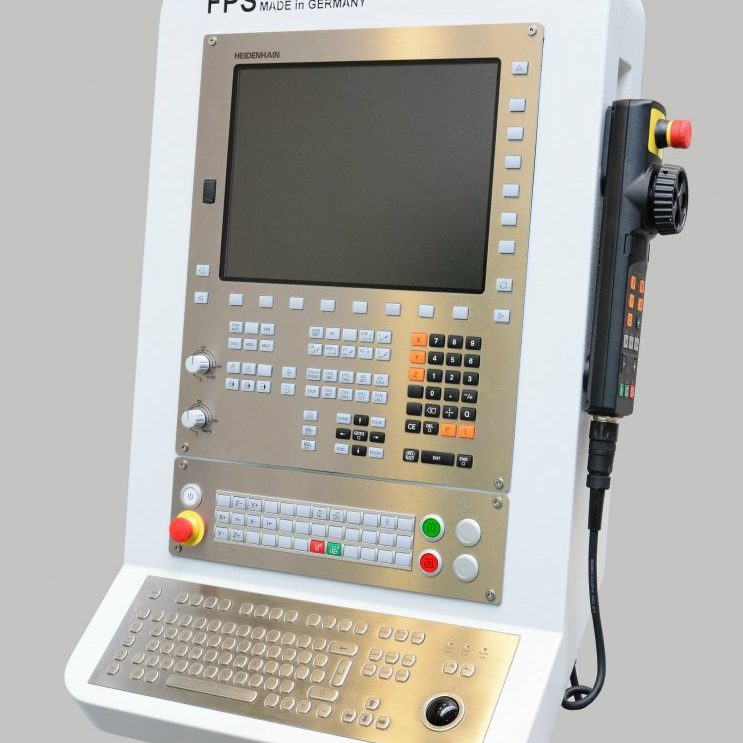

  • Heidenhain TNC 320 - Heidenhain - Klartext or DIN / ISO programming
  • Siemens 840D SL - User interface Siemens ShopMill and DIN / ISO programming.
Optional items
  • Electronic handwheel
  • Spray guard cabin
  • Swarf tray
  • NC rotary table
  • NC indexing head
  • Universal machining table
  • Special paint coating
  • etc.
