DECKEL | Completely refurbished – good as new

FP2 A 2819 with CNC control

DECKEL Contour 3 | DECKEL Dialog 11 | HEIDENHAIN TNC 320 | SIEMENS 840 D SL

Technical data

Item conditionCompletely refurbished - as new
Item number2500 (DECKEL Contour 3)
2510 (DECKEL Dialog 11)
2520 (HEIDENHAIN TNC 320)
2530 (SIEMENS 840 D SL)
OperationCNC without control wheel

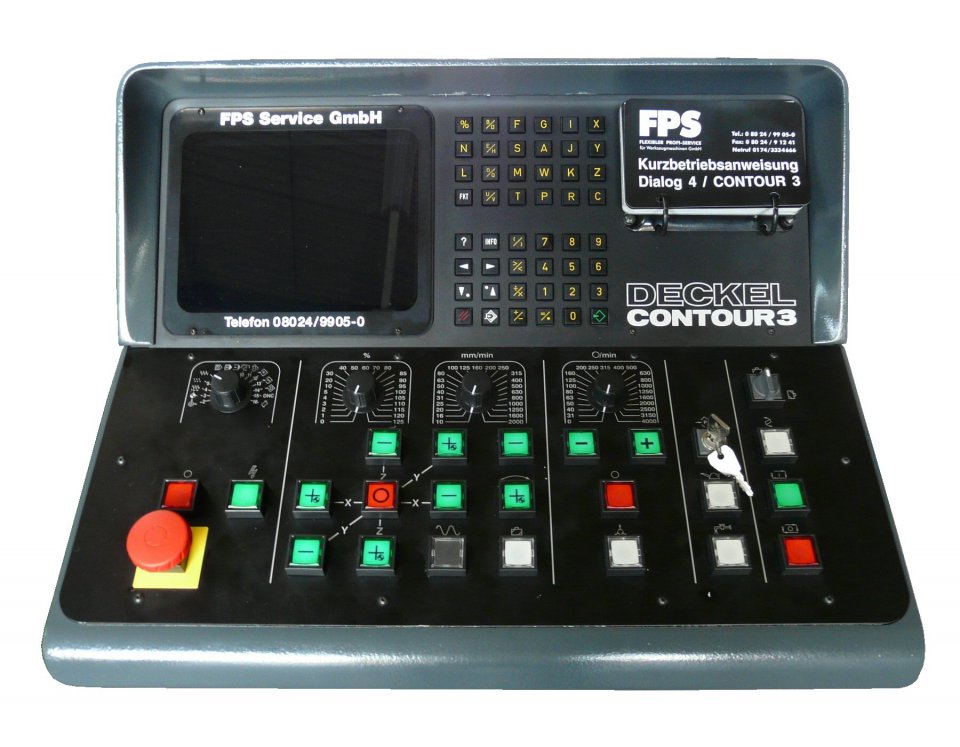

ControlDECKEL Contour 3

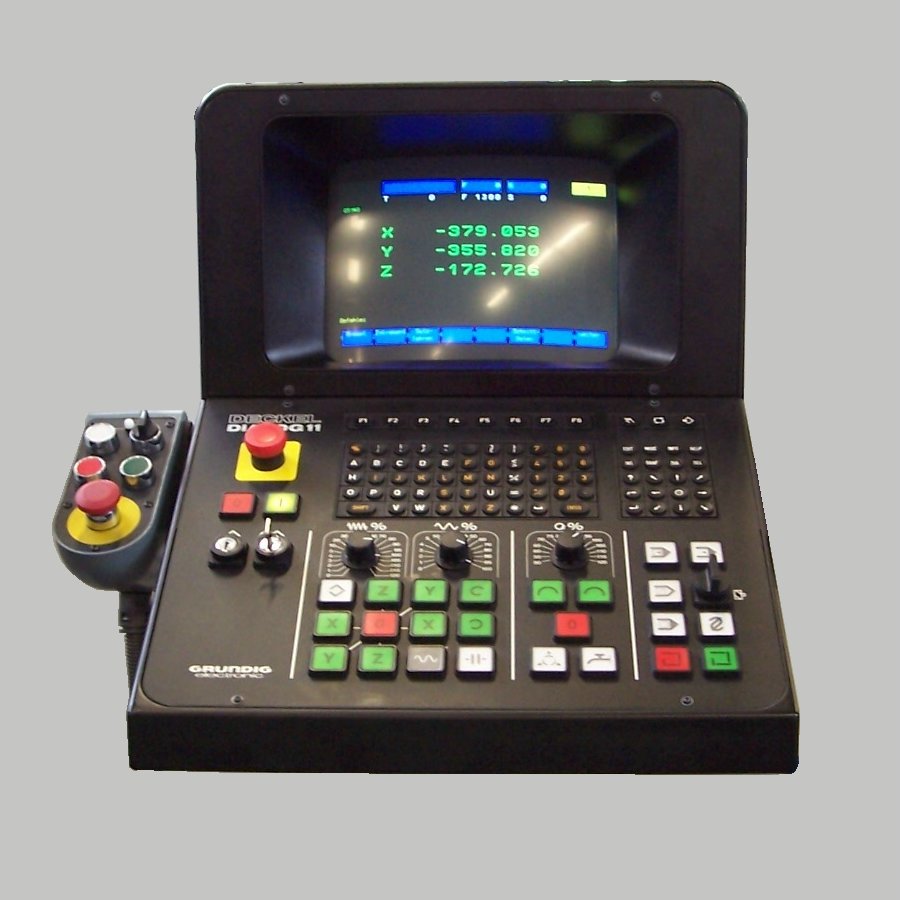

DECKEL Dialog 11

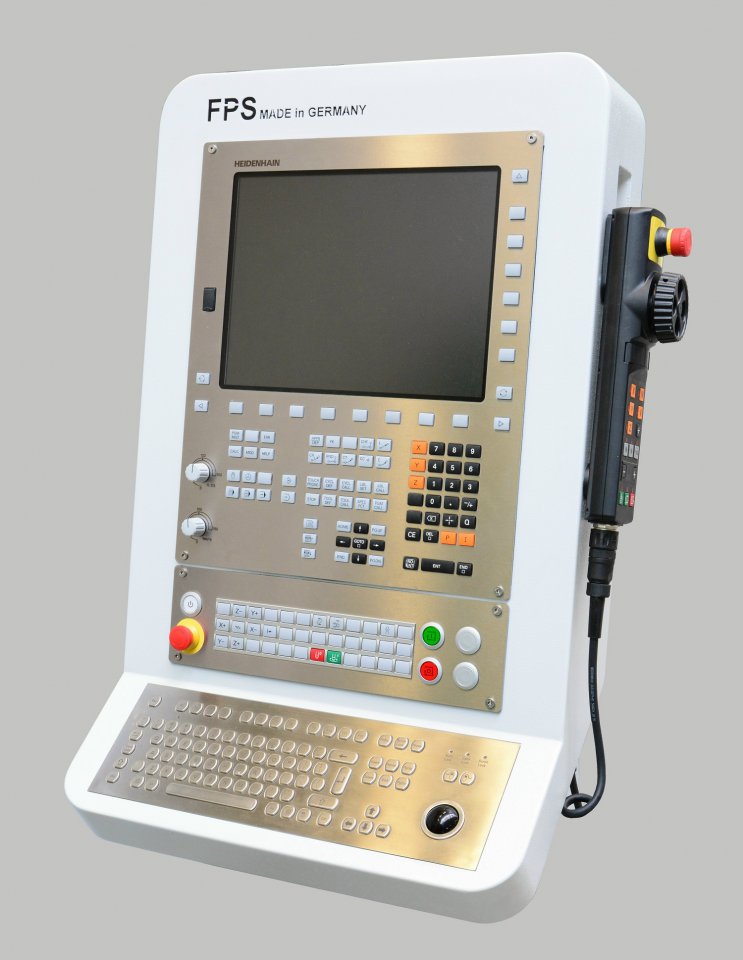

HEIDENHAIN TNC 320

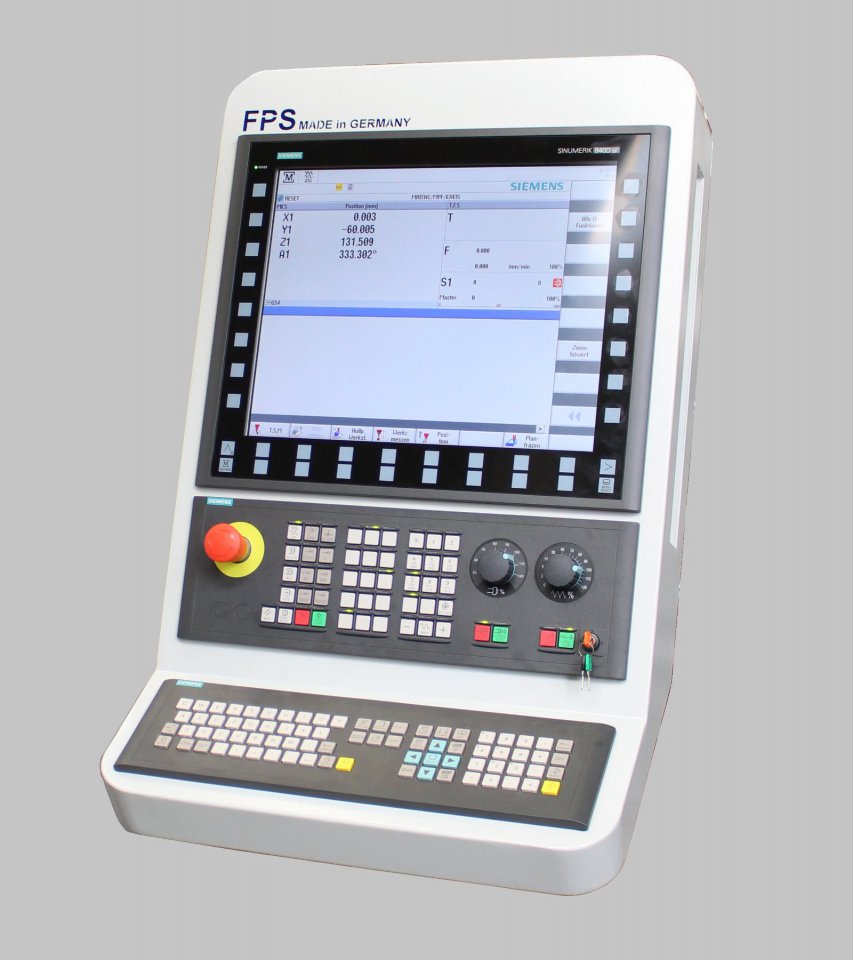

SIEMENS 840 D SL
Speed
40–4000 rpm
Feed rate2–3600 mm/min continuously variable
Rapid feed4000 mm/min
Power1.6/2.0 KW – 1430/2830 rpm
Tail spindleVertical 60 mm extending tail spindles SK40 with DIN 2080 or DIN 69872 clamping system
AxesX/Y/Z 300/300/400 mm
Angle tableFixed table, 620 x 390 mm, max. load 250 kg
FPS - Standard
  • Completely refurbished machine, as new in terms of mechanics and electronics.
  • The control system, drive package and drive motors were completely renewed and brought up to date in the course of the complete refurbishment.

Specifications
  • Vertical and horizontal spindle
  • Manually swivelling milling head (+/- 90°)

Hydromechanical clamping system
  • SK40 with DIN 2080 or DIN 69872 tightening bolts

Programming:
  • Deckel Contour 3 - Dialog-guided programming with versatile machining cycles.
  • Deckel Dialog 11 - Dialog-guided programming with versatile machining cycles.
  • Heidenhain TNC 320 - Heidenhain - Klartext or DIN / ISO programming
  • Siemens 840D SL - User interface Siemens ShopMill and DIN / ISO programming.

Optional items
  • Electronic handwheel
  • Spray guard cabin
  • Chip tray
  • NC rotary table
  • NC indexing head
  • Universal machining table
  • Special paint coating
  • etc.

Downloads

FP2-A-2819-jh-tnc320-02
