DECKEL | Completely refurbished – good as new

FP5 NC 2806 with CNC control

DECKEL Dialog 4 | DECKEL Dialog 11 | HEIDENHAIN TNC 320 | SIEMENS 840 D SL

Vertical milling head as folding head
Modernized with CNC control

Technical data

Item conditionCompletely refurbished - as new
Item number5540 (DECKEL Dialog 4)
5550 (DECKEL Dialog 11)
5560 (HEIDENHAIN TNC 320)
5570 (SIEMENS 840 D SL)
OperationCNC without control wheel
ControlDECKEL Dialog 4
DECKEL Dialog 11

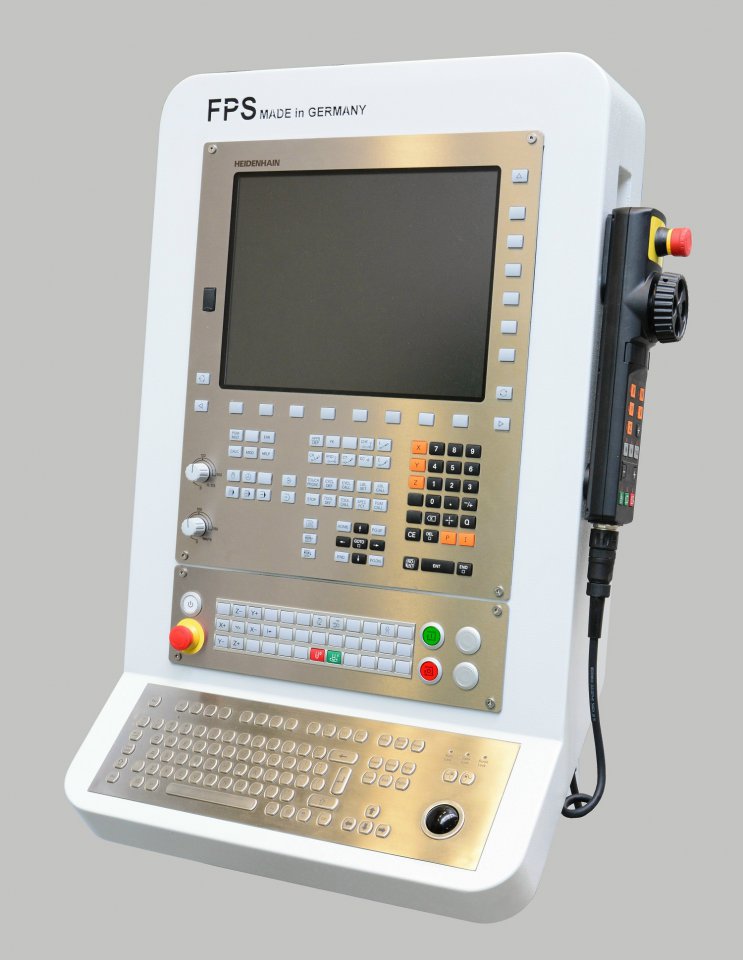

HEIDENHAIN TNC 320
SIEMENS 840 D SL
Speed
0–6300 rpm
Feed rate1–3600 mm/min continuously variable
Rapid feed6000 mm/min
Power7.5 KW
Tail spindleVertical 80 mm extending tail spindles, SK40 with DIN 2080 or DIN 69872 clamping system
AxesX/Y/Z 710/600/445 mm
Angle tableFixed table, 1000 x 550 mm, max. load 600 kg
FPS - Standard
  • Completely refurbished machine, as new in terms of mechanics and electronics.
  • The control system, drive package and drive motors were completely renewed and brought up to date in the course of the complete refurbishment.

Specifications
  • Vertical and horizontal spindle
  • Manually swivelling milling head (+/- 90°)

Hydromechanical clamping system
  • SK40 with DIN 2080 or DIN 69872 tightening bolts

Programming:
  • Deckel Dialog 4 - Dialog-guided programming with versatile machining cycles.
  • Deckel Dialog 11 - Dialog-guided programming with versatile machining cycles.
  • Heidenhain TNC 320 - Heidenhain - Klartext or DIN / ISO programming
  • Siemens 840D SL - User interface Siemens ShopMill and DIN / ISO programming.
