DECKEL | Completely overhauled – good as new

FP3 NC 2837 with CNC control

DECKEL Dialog 11 | HEIDENHAIN TNC 320 | SIEMENS 840 D SL

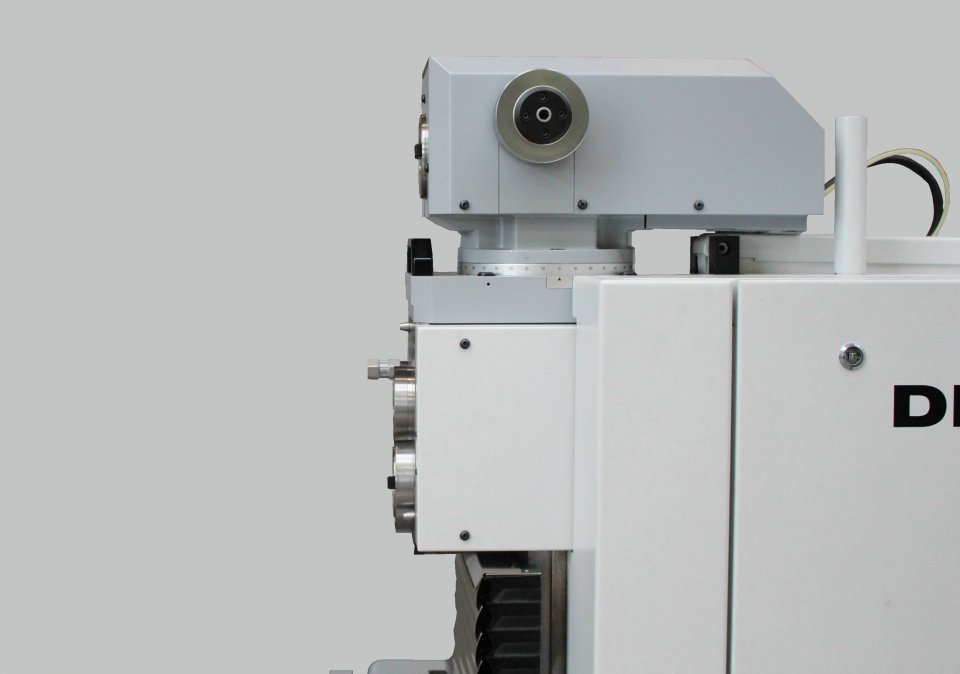

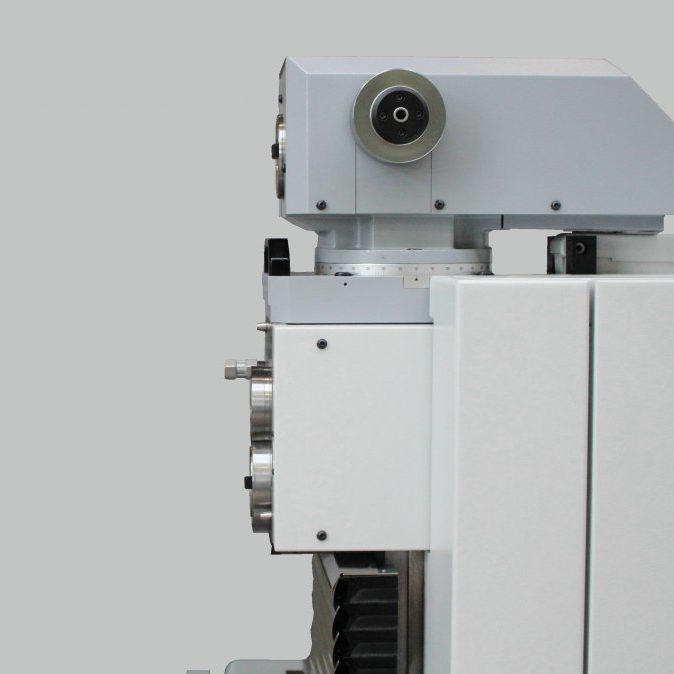

Vertical cutting head as folding head

Modernized with CNC control

Technical data

Item conditionCompletely overhauled - like new
Item number3620 (DECKEL Dialog 11)
3630 (HEIDENHAIN TNC 320)
3640 (SIEMENS 840 D SL)
OperationCNC without control wheel
ControlDECKEL Dialog 11
HEIDENHAIN TNC 320
SIEMENS 840 D SL
Speed
31.5–5000 rpm, 2-stage gearbox, continuously variable programming
Feed rate2–6000 mm/min continuously variable
Rapid feed6000 mm/min
Power5.5 KW at 100% DC
Tail spindleVertical 80 mm extending tail spindles SK40 with DIN 2080 or DIN 69872 clamping system
AxesX/Y/Z 400/400/400 mm
Angle tableRigid angle table, 700 x 460 mm, max. load 350 kg
Specifications
  • Vertical cutting head as folding head
  • SK40 hydromechanical clamping system with DIN 2080 or DIN 69872 tightening bolts
  • Vertical and horizontal spindle
  • Manually rotating (+/- 90°) cutting head

Programming:
With plain-text display and DIN ISO programming.

Special:
  • Completely overhauled machine, like new in terms of mechanics and electronics.
  • The control system, drive package and drive motors were completely renovated and brought up to the latest standard in the course of the complete overhaul.
Optional items
  • E-handwheel
  • Spray guard cabin
  • Swarf tray
  • NC rotary table
  • NC indexing head
  • Universal machining table
  • Special paint coating
  • etc.
