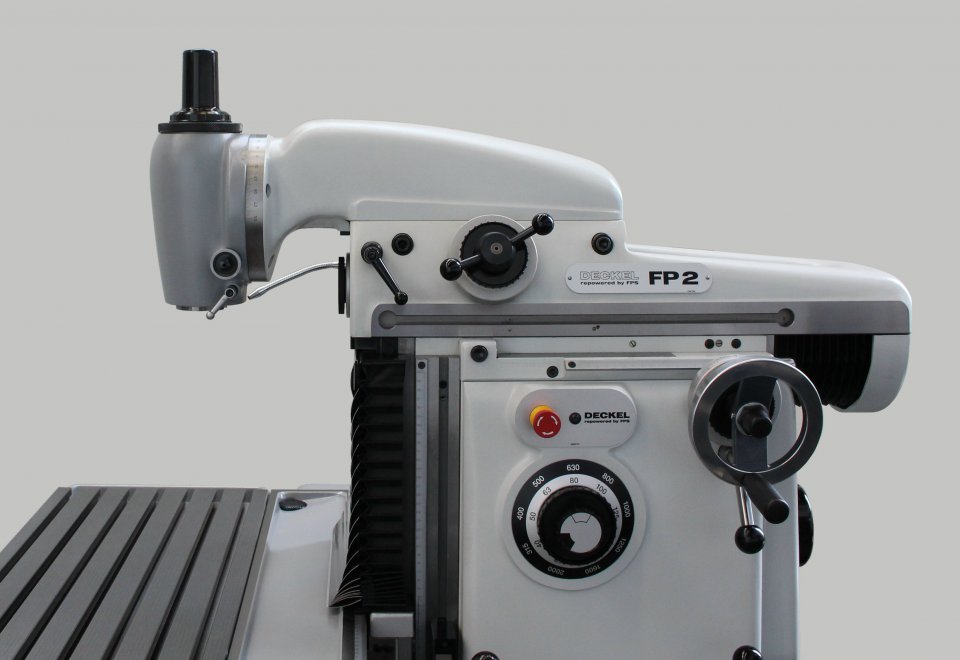

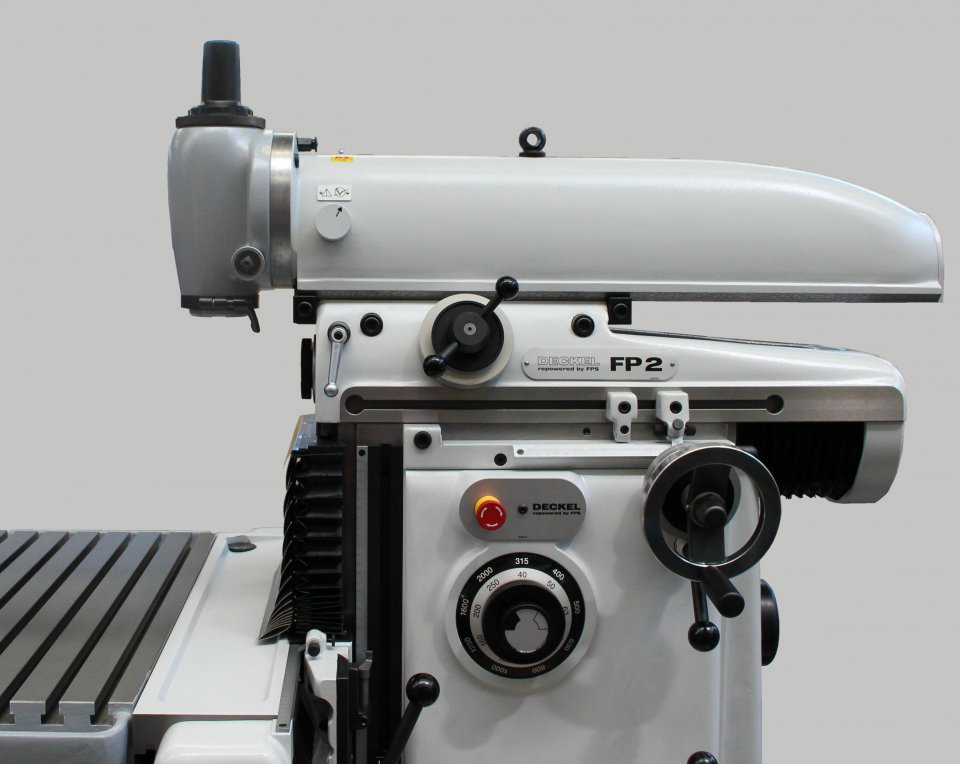

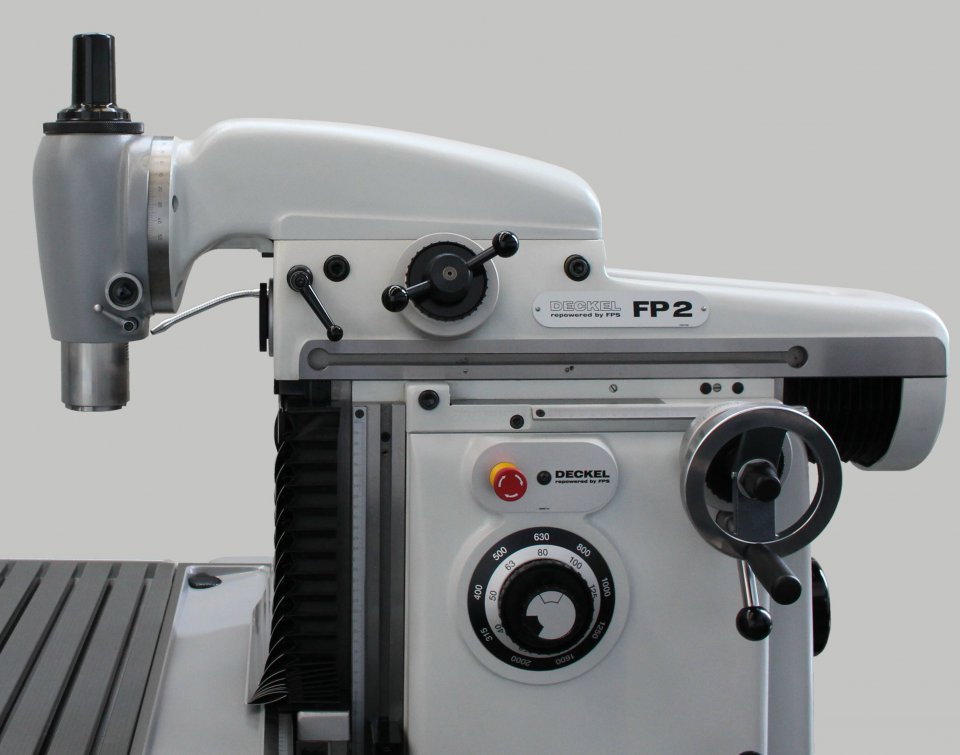

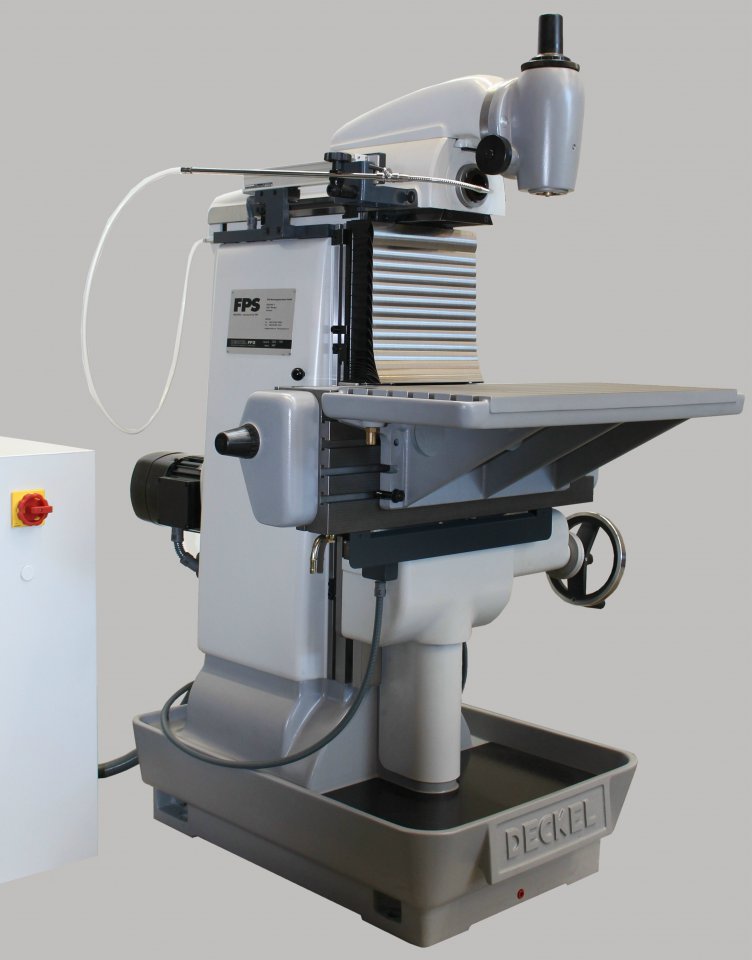

DECKEL | Completely overhauled – good as new

FP2 2202 conventional, standard X-400 mm

Modified and modernized to include a new touch-proof CE switchboard in line with the latest guidelines of relevant industrial occupational bodies and the DIN EN 60204-1 standard.

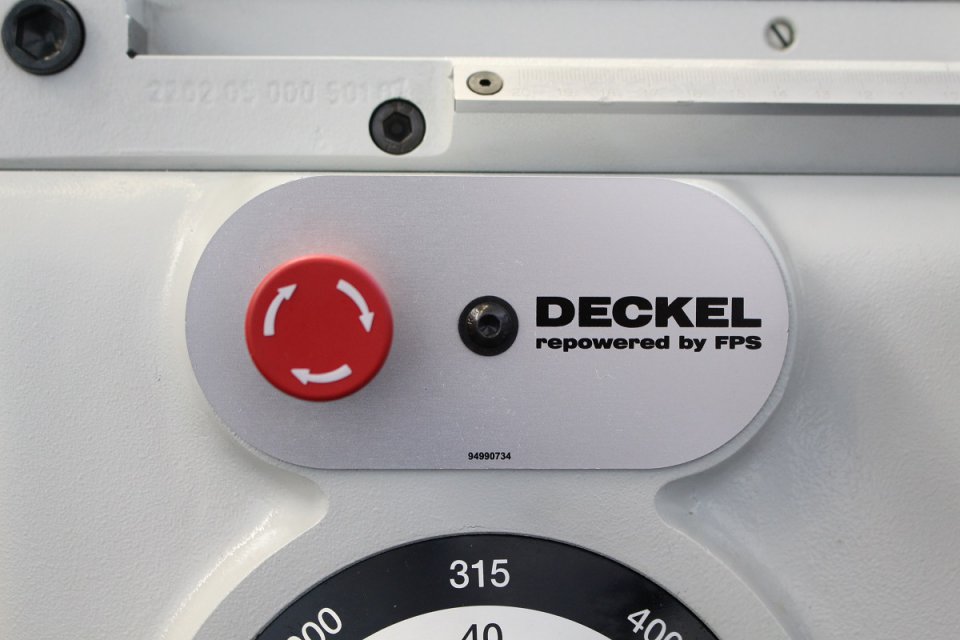

The machine has been modified to include a new brake motor. When the spindle stops, the milling spindle comes to an immediate standstill.

Technical data

Item conditionCompletely overhauled - like new
Item number2010
OperationManual

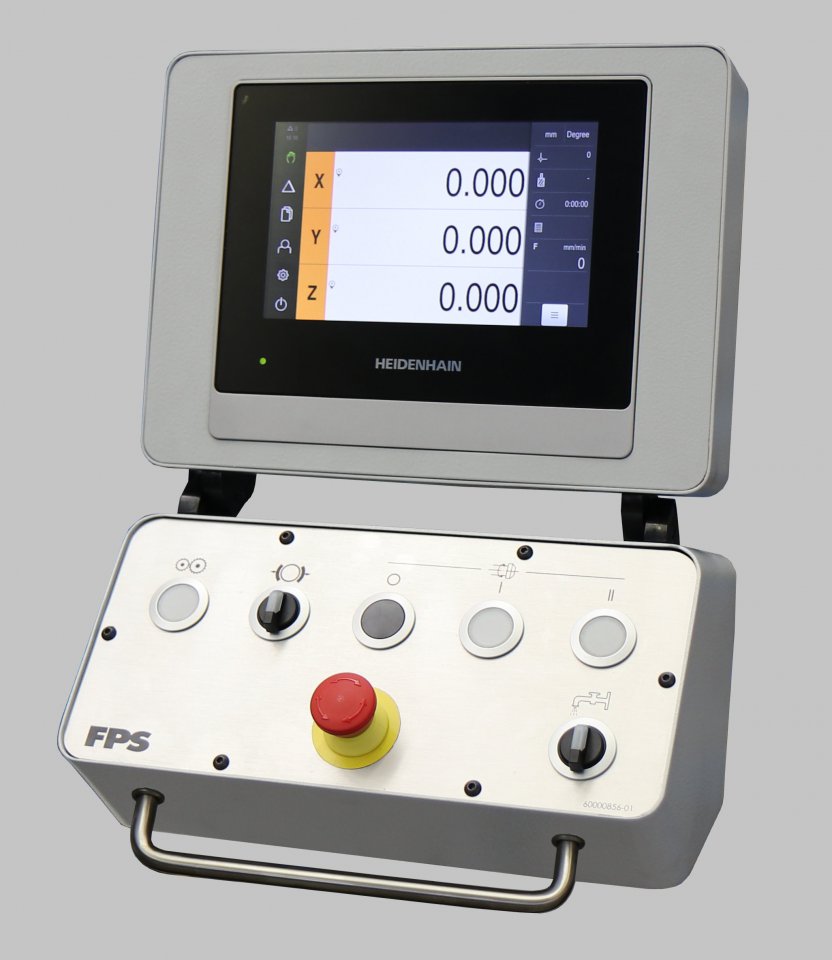

Control3-axis digital display – Heidenhain ND 7013
Speed
40–2000 rpm geometrically stepped direct gear with 18 gear steps for maximum torque/milling power
Feed rate8–400 mm/min, geometrically stepped feed area
Rapid feed1.2 m/min
Tail spindleExtending tail spindles vertical 60 mm and horizontal 100 mm SK40 with DECKEL S20 buttress thread x 2 or M16 tightening thread
AxesX/Y/Z 400/200/400 mm
Angle tableRigid angle table, 700 x 330 mm, max. load 300 kg

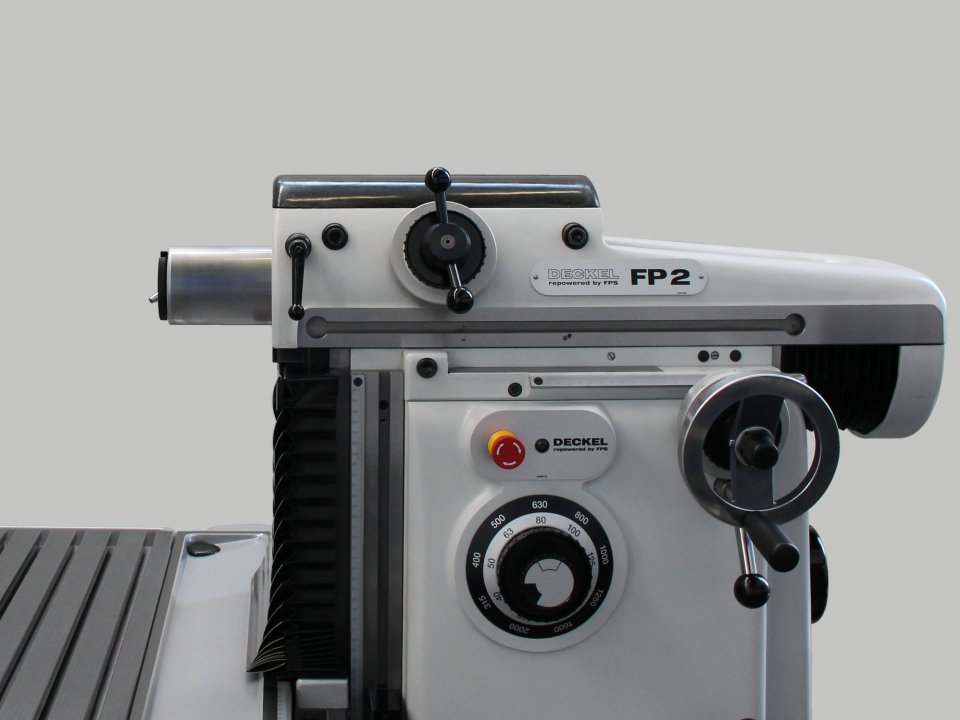

SpecificationsVertical and horizontal spindle

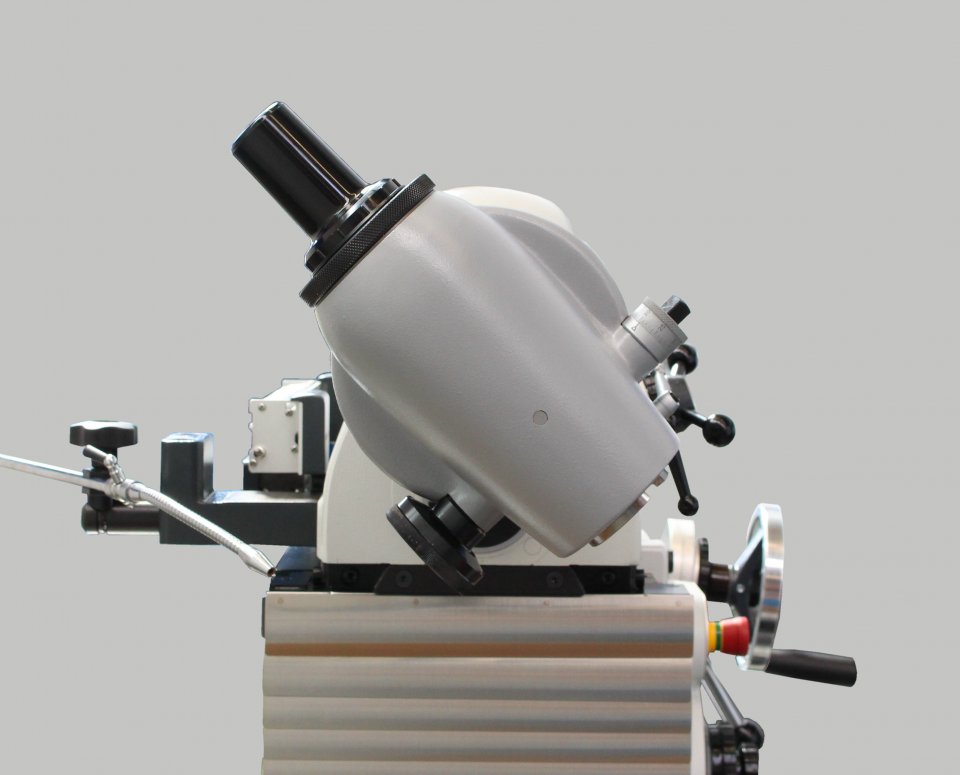

Manually rotating cutting head
+/- 90°
Optional items
  • Long adjustable vertical cutting head – 300 mm adjustable, largest projection from the middle of the milling spindle to the front of the column 625 mm
  • Upgrade to M16 tightening system
  • Central lubrication
  • Swarf tray
  • Protection bellows in the Z-axis
  • Machine lamp
  • Universal machining table
  • Rotary table
  • Indexing head
  • Counterbearing
  • Bumper head
  • Special paint coating
  • etc.
