FPS Universal milling and drilling machine

FPS 630M-digital Dualmaster

Technical data

FPS 500M-digital

Operating area

X-axis600 mm
Y-axis450 mm
Z-axis400 mm

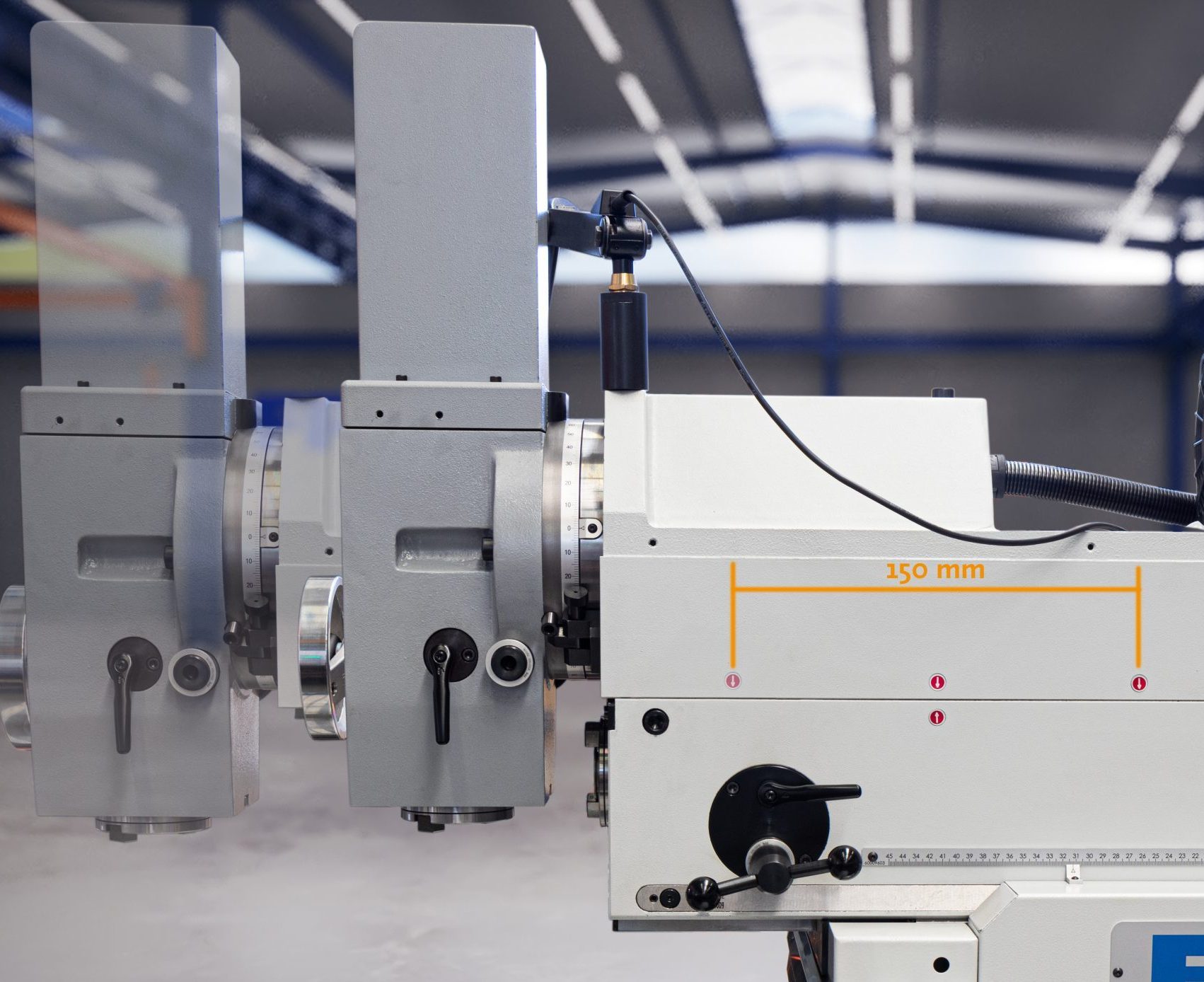

Cutting head can also be moved further along the Y-axis150 mm
W x D x H space2600 x 2100 x 2050 mm

Angle table

Table/clamping surface800 x 470 mm
T-grooves: Number / width / distance7 / 14H12 alignment groove 14H7 / 63 mm
Permitted load350 kg

Operating spindle

Vertical and horizontal
horizontal (optional)
Vertically extending as drill spindle,
with clamp/stroke
approx. 80 mm

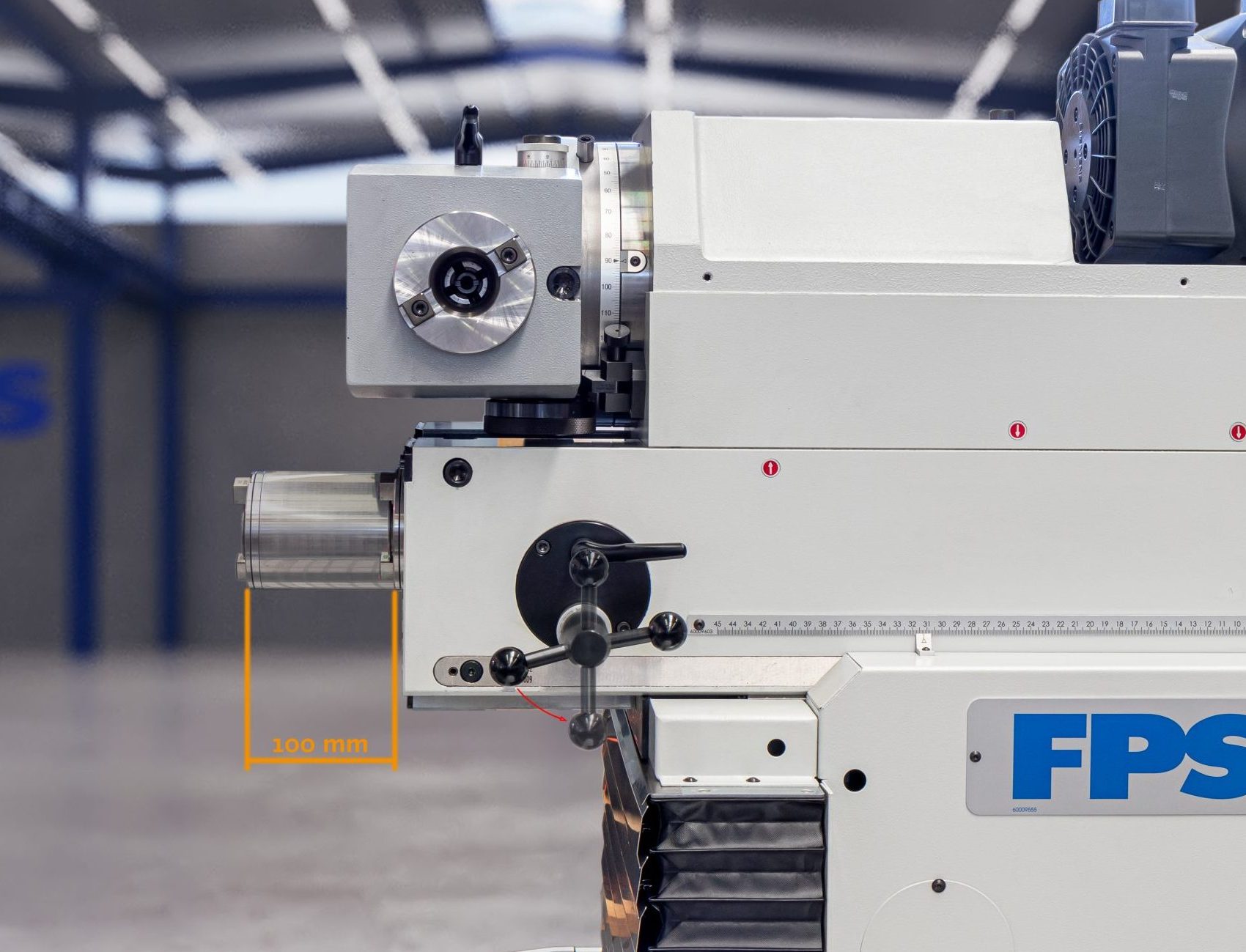

horzontally extending as drill spindle, (optional)
with clamp/stroke
approx. 100 mm
Manually rotating cutting head+/- 90°

Tool holder

with hydraulic tool clampingISO 40 DIN 69871

Tightening system

Hydraulic tightening systemDIN 69872 (standard)
DIN 2080 (optional)

Main drive, three-phase-current brake motor

Power14,1 kW
Torque243 Nm
Spindle speed20 to 5000 rpm
(stepless adjustable)

Feed drive, digital drive

Feed rate, continuously variable0 to 2000 mm/min
Rapid feed5 m/min
Control wheel manual rotation2.5 mm

Connection

Mains connection3 x 400 VAC 50 Hz 25 A
Max. prelim. fuse rating35 A
Mains configurationTN-S connection type: Fixed connection

Control cabinet electronics

CE-compliant in line with current
regulations of professional associations
BGVA 3 / DIN EN 60204-1

Weight

Total machine weight
incl. machining table, cutting head, cabin and control cabinet
approx. 2300 kg
