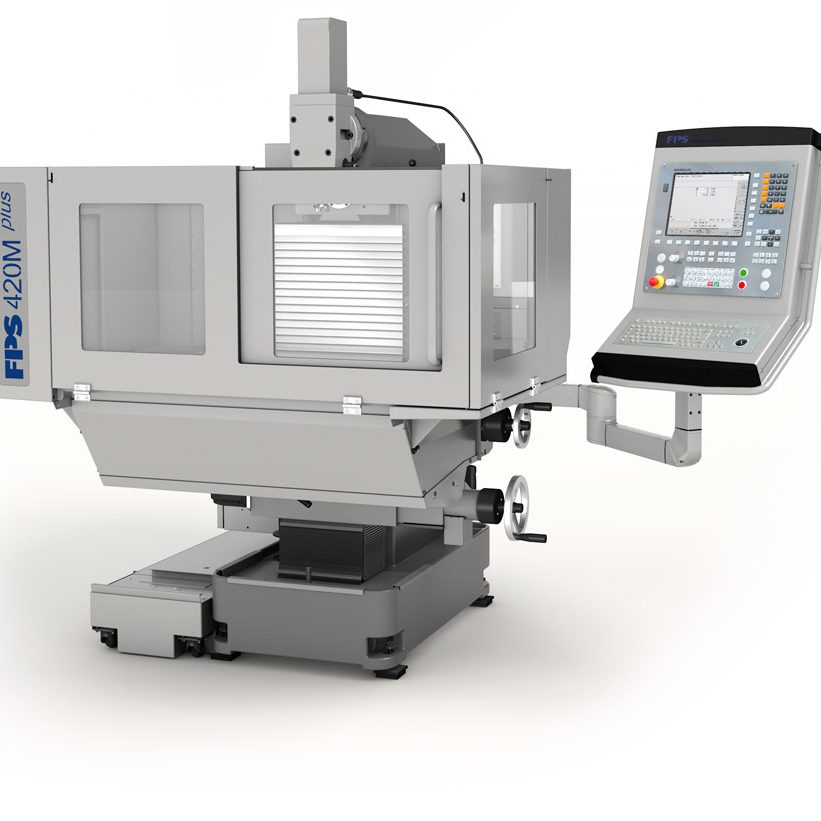

FPS UNIVERSAL MILLING MACHINE AND DRILL

FPS 420M-plus

Technical data

Operating area

X-axis420 mm
Y-axis350 mm
Z-axis400 mm
Cutting head can also be moved further along the Y-axis150 mm
W x D x H space2235 x 1875 x 2000 mm

Angle table

Table/clamping surface630 x 400 mm
T-grooves: Number / width / distance6 / 14 H12 alignment groove H7 / 63 mm
Permitted load300 kg

Operating spindle

Vertical and horizontal
Vertically extending as drill spindle,
with clamp/stroke
approx. 80 mm
Manually rotating cutting head+/- 90°

Tool holder

with hydraulic tool clampingISO 40 DIN 69871

Tightening system

Hydraulic tightening systemDIN 69872 (standard)
DIN 2080 (optional)

Main drive, three-phase-current brake motor

Power7.0 kW
Torque340 Nm
Speed across2 gear stages 0 to 4500 rpm

Feed drive, digital drive

Feed rate, continuously variable0 to 2000 mm/min
Rapid feed5000 mm/min
Control wheel manual rotation2.5 mm

Connection

Mains connection3 x 400 VAC 50 Hz 25 A
Max. prelim. fuse rating35 A
Mains configurationTN-S connection type: Fixed connection

Control cabinet electronics

CE-compliant in line with current
regulations of professional associations
BGVA 3 / DIN EN 60204-1

Weight

Total machine weight
incl. machining table and cutting head
approx. 1650 kg
Spray guard cabin (optional)150 kg

Control

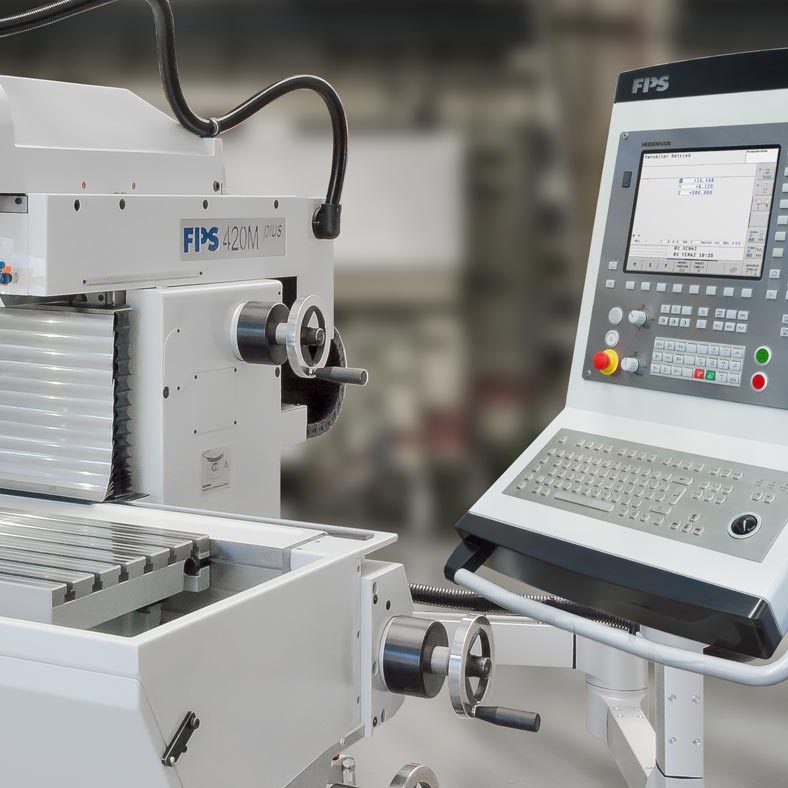

Linear path controlHEIDENHAIN TNC 128

Downloads

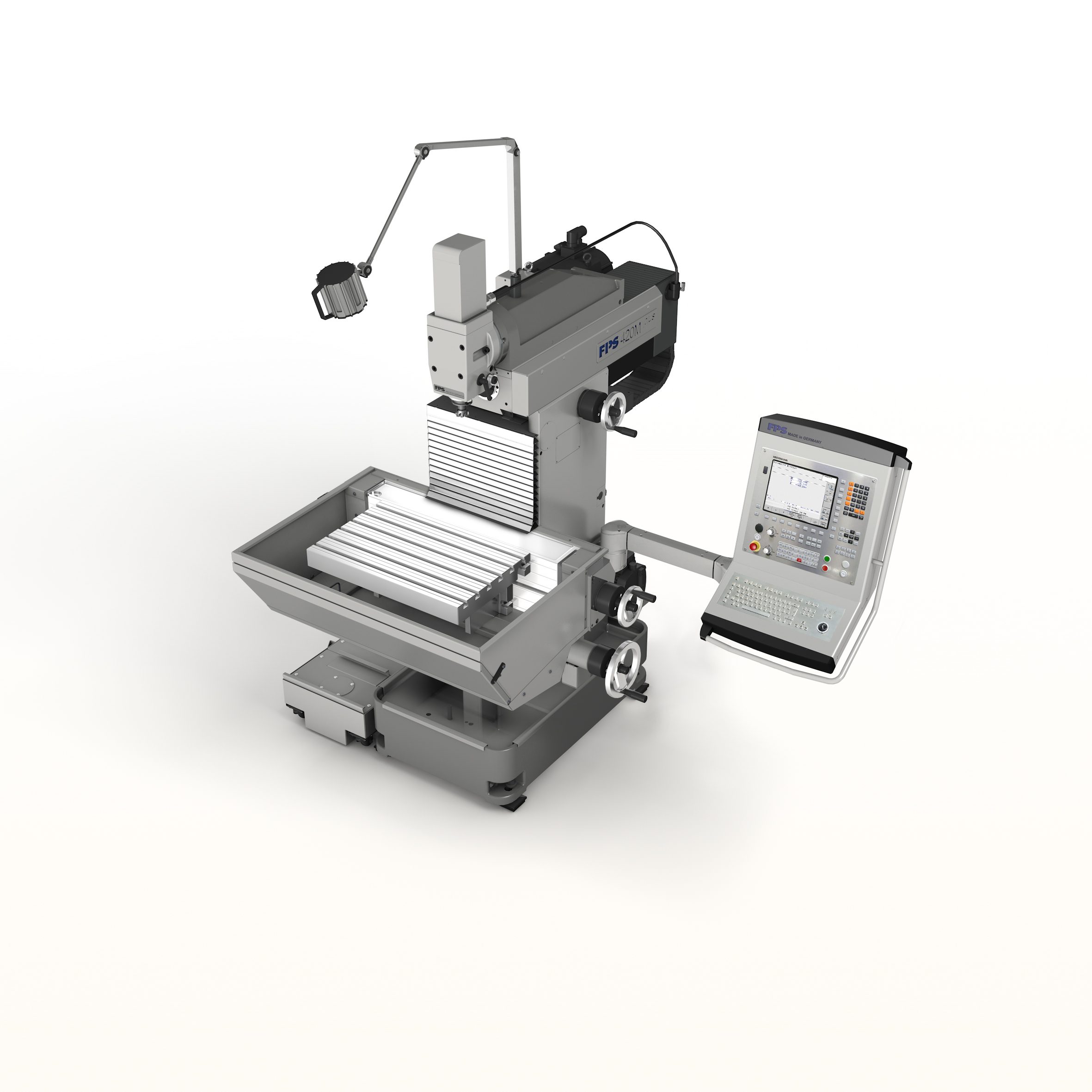

FPS 420M-plus universal milling machine and drill with linear path control, HEIDENHAIN TNC 128
