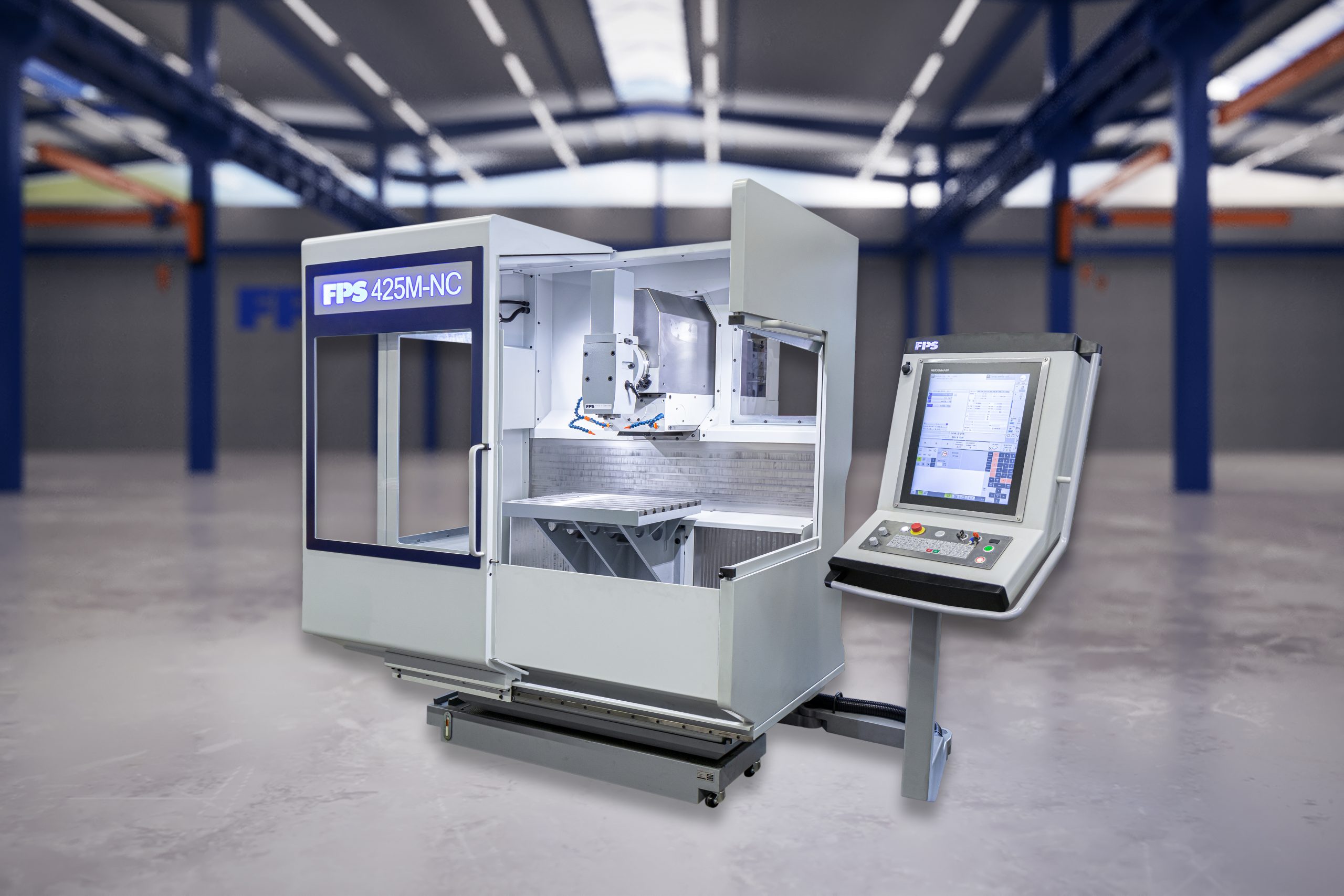

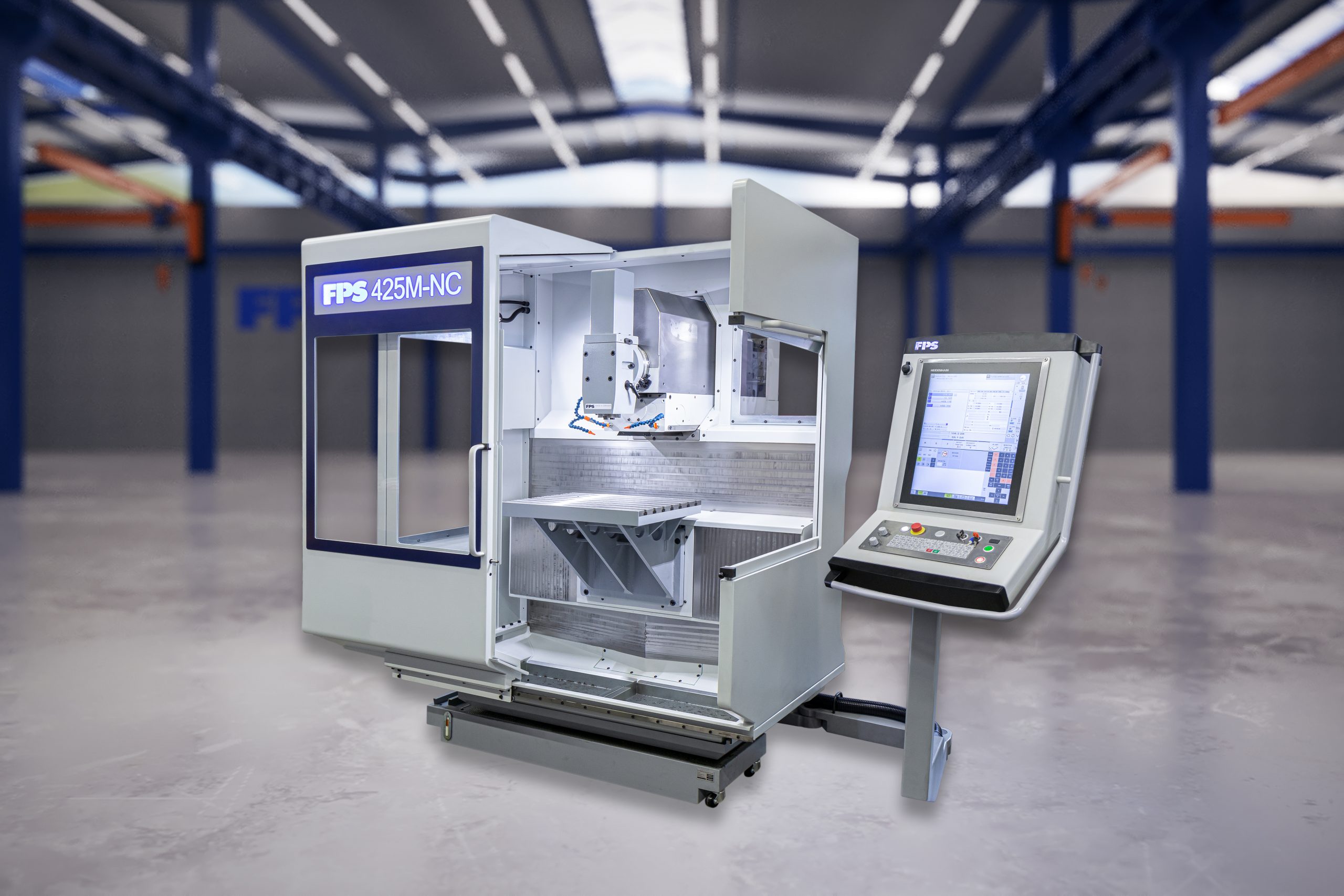

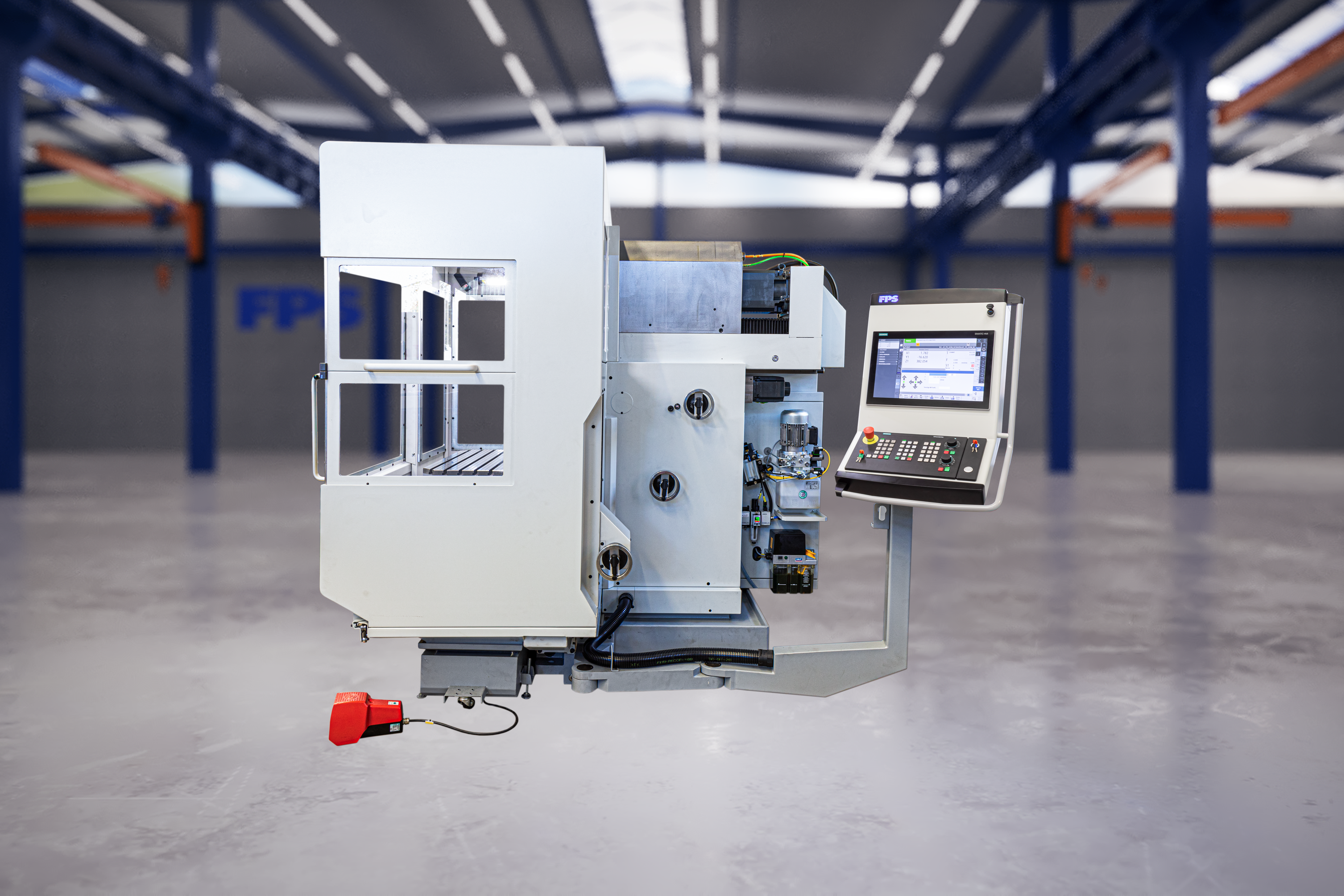

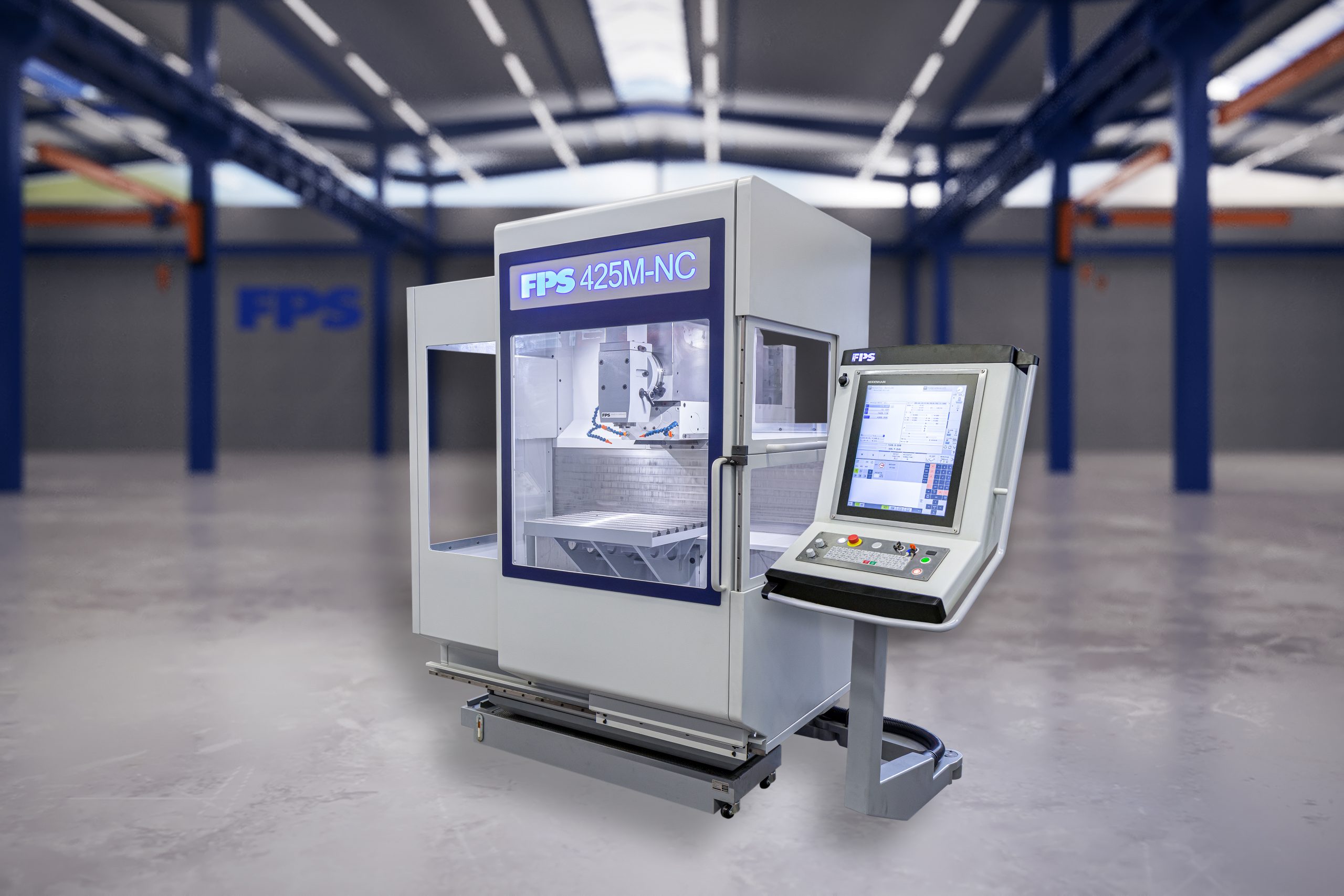

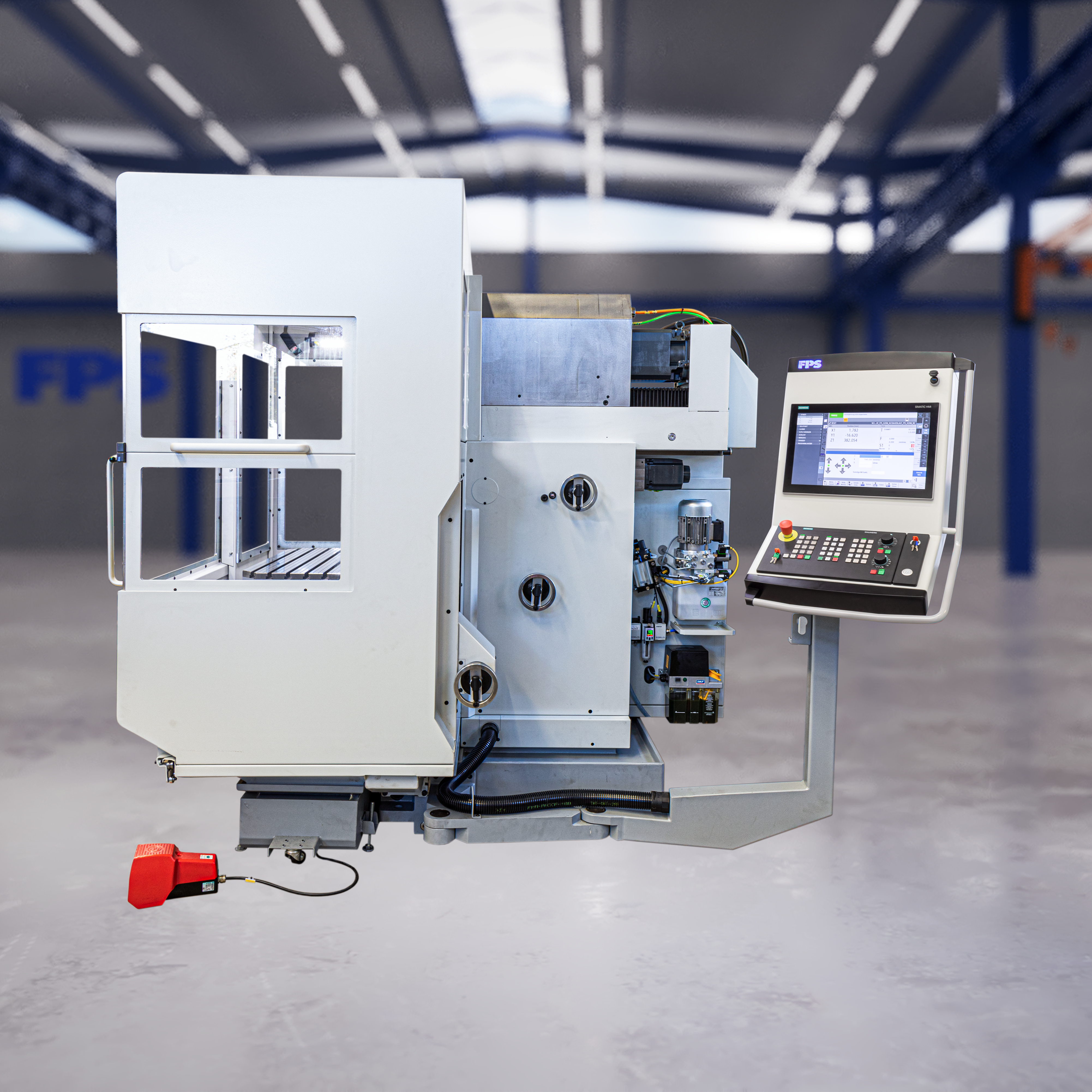

FPS universal milling an drilling machine

FPS 425M-NC Dualmaster

Technical data



FPS 425M-NC

Operating area

X-axis425 mm
Y-axis450 mm
Z-axis400 mm
Milling head can also be moved further along the Y-axis150 mm
W x D x H space3250 x 2300 x 2215 mm

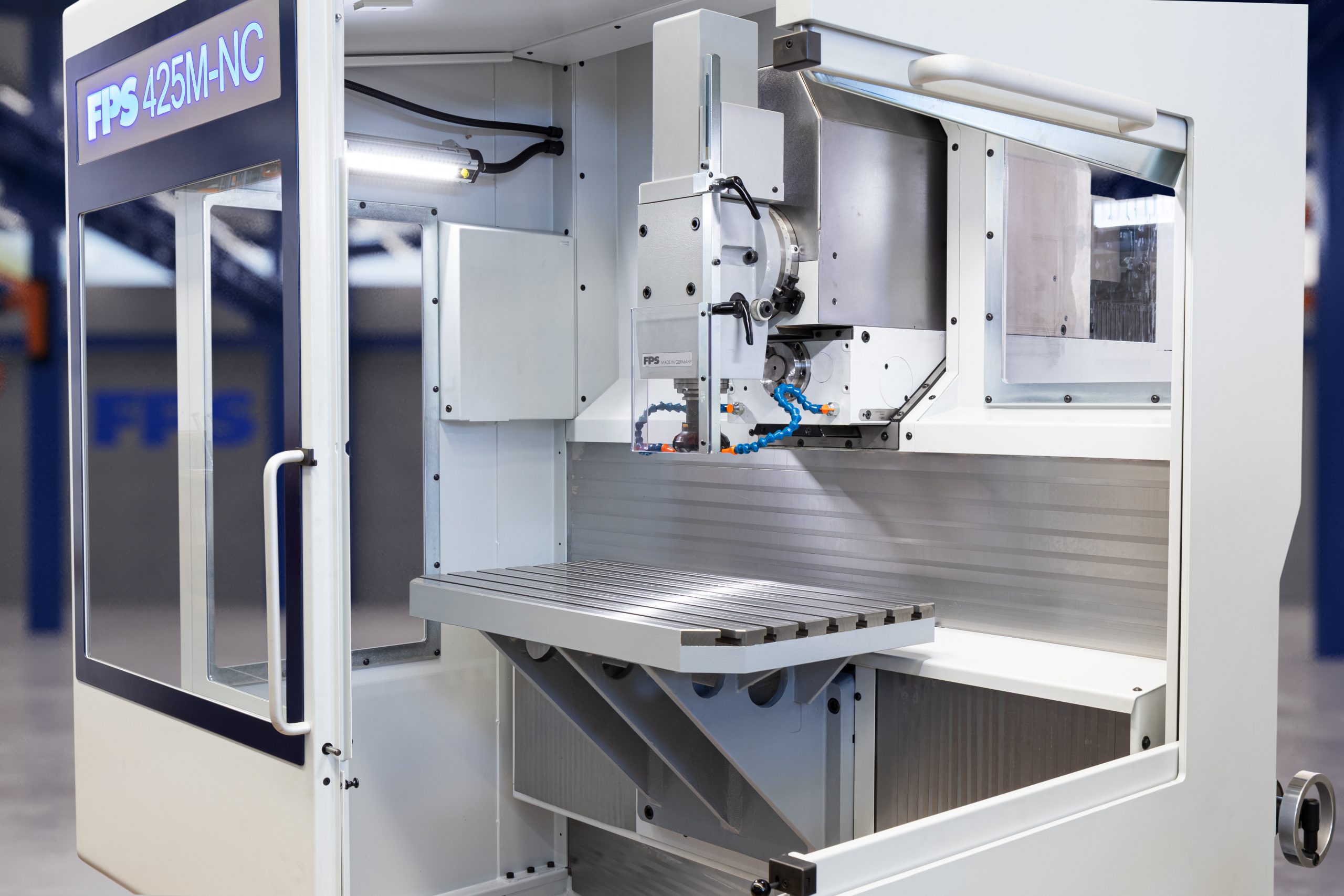

Fixed table

Fixed Table/clamping surface630 x 470 mm
T-grooves: Number / width / distance6 / 14H12 alignment groove 12H7 / 63 mm
Permitted load350 kg

Operating spindle

Vertical and horizontal
horizontal (optional)
Vertically extending as drill spindle,
with clamp/stroke
approx. 80 mm

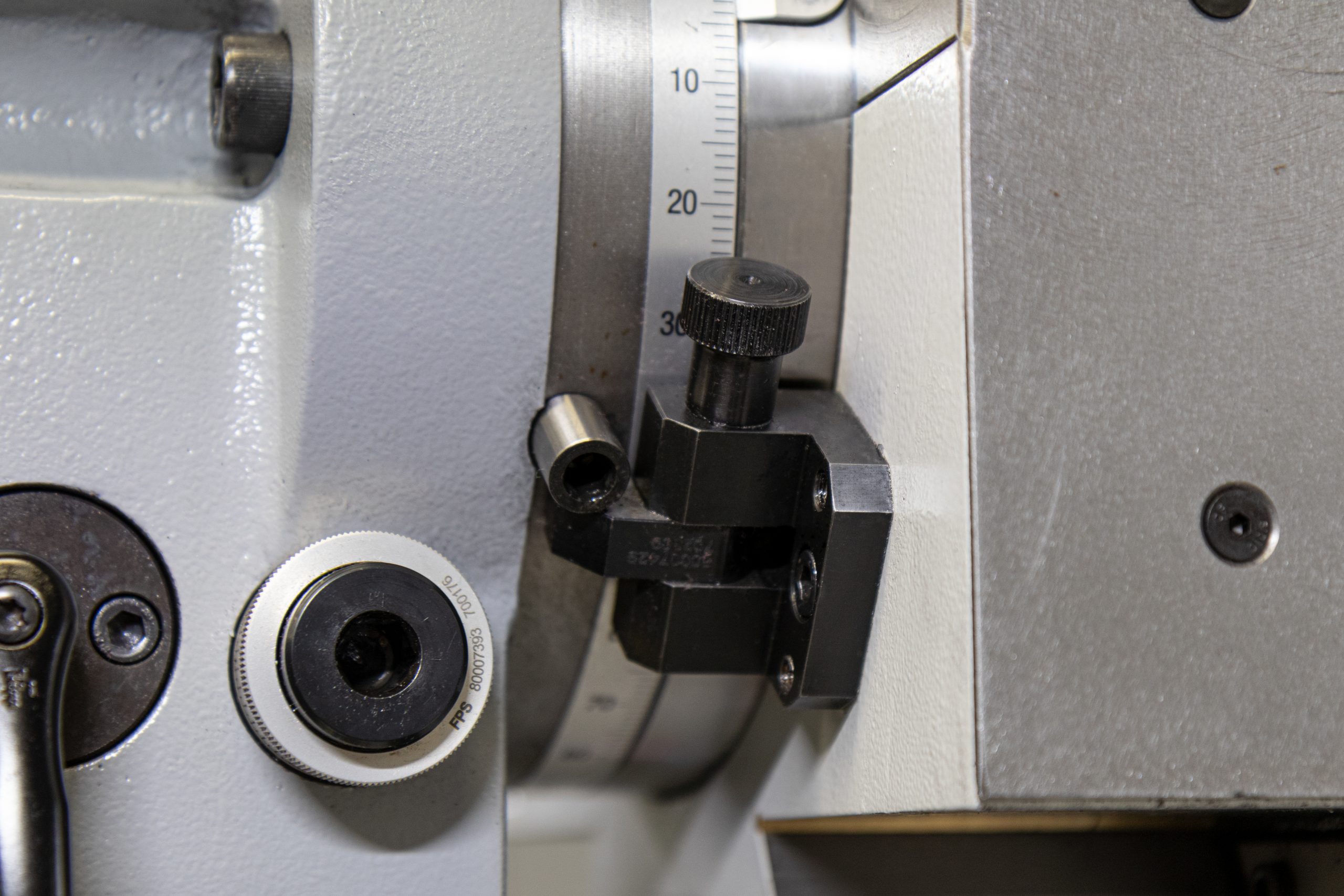

Manually rotating milling head+/- 90°

Tool holder

with hydraulic tool clampingISO 40 DIN 69871

Tightening system

Hydraulic tightening systemDIN 69872 (standard)
DIN 2080 (optional)

Main drive, three-phase-current brake motor

Power14,1 kW
Torque243 Nm
Spindle speed0 to 5000 rpm
(stepless adjustable)

Feed drive, digital drive

Feed rate, continuously variable0 to 10000 mm/min
Rapid feed10 m/min
Control wheel manual rotation2.5 mm

Connection

Mains connection3 x 400 VAC 50 Hz 25 A
Max. prelim. fuse rating35 A
Mains configurationTN-S connection type: Fixed connection

Control cabinet electronics

CE-compliant in line with current
regulations of professional associations
BGVA 3 / DIN EN 60204-1

Weight

Total machine weight
incl. machining table, milling head, cabin and control cabinet
approx. 2640 kg
