MANUFACTURER FPS | new

Electrically safeguarded milling cutter protection / Splash protection

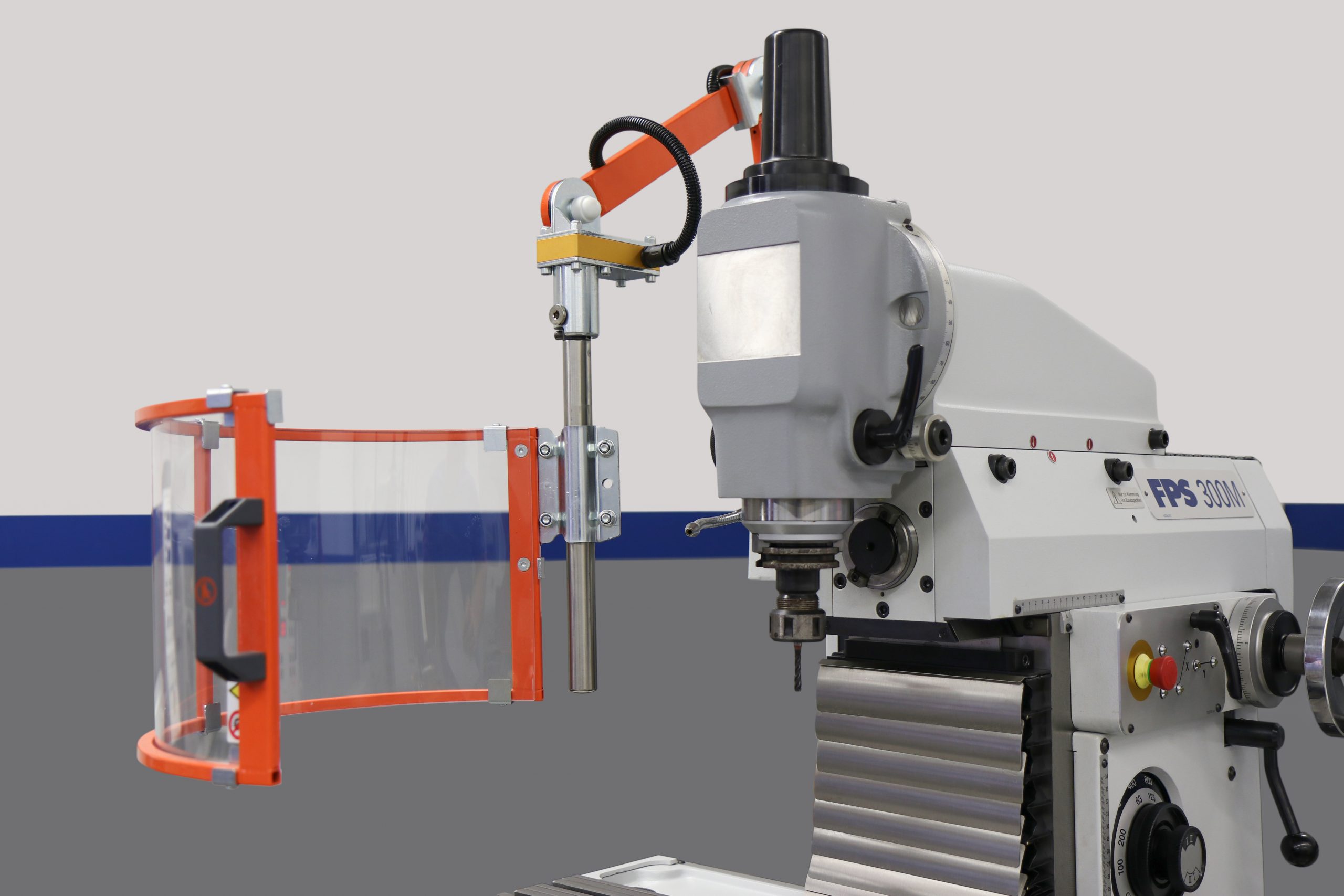

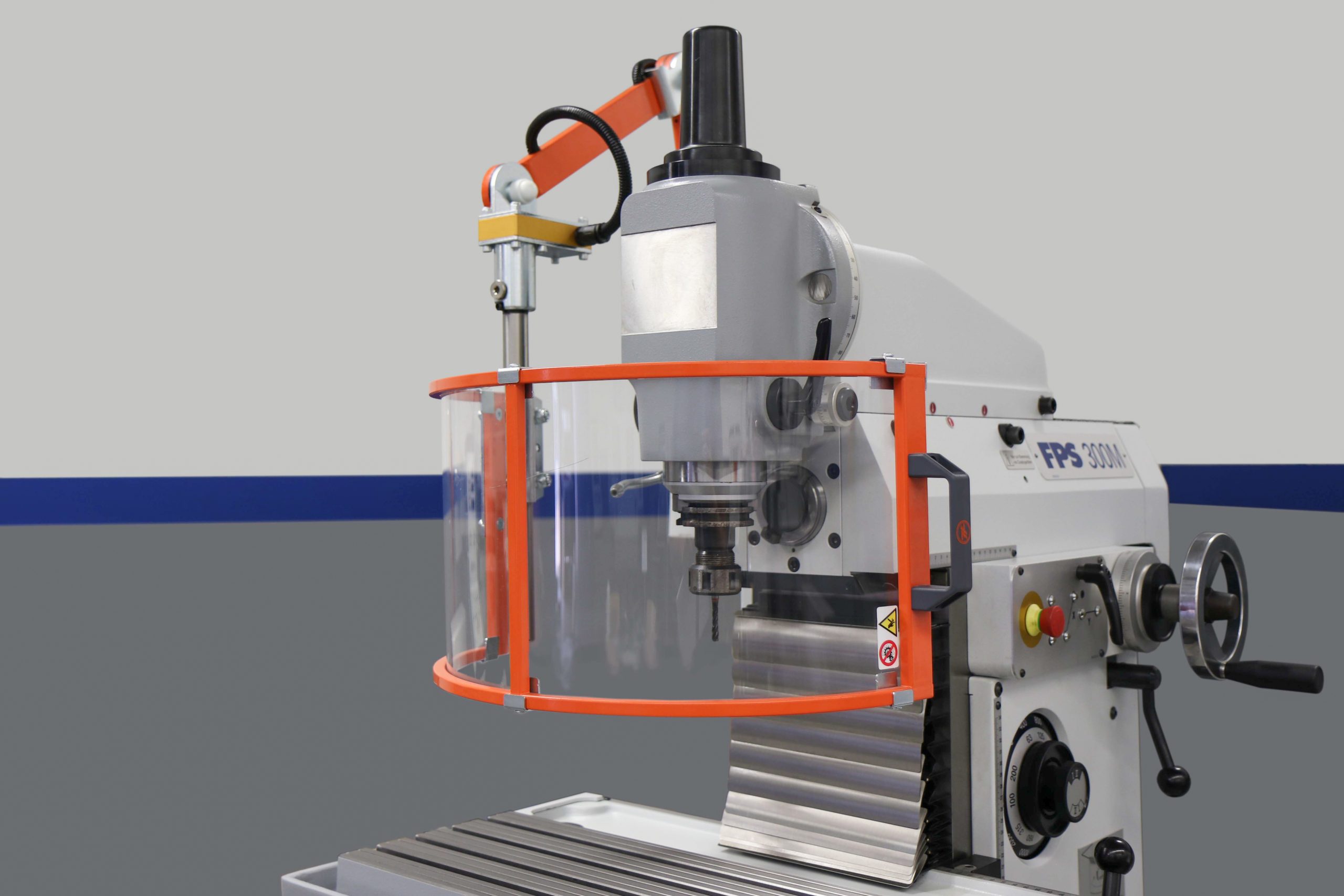

Protection for the operator against flying parts, cooling lubricant and direct contact with the milling spindle and milling tool. The protective device is equipped with a transparent plastic shield and a steel frame. In addition, the protective device has two special safety microswitches which ensure that the machine operator can only work when the protective cover of the machine is closed.

Technical data

Item condition	New
Item no.	AR-01200

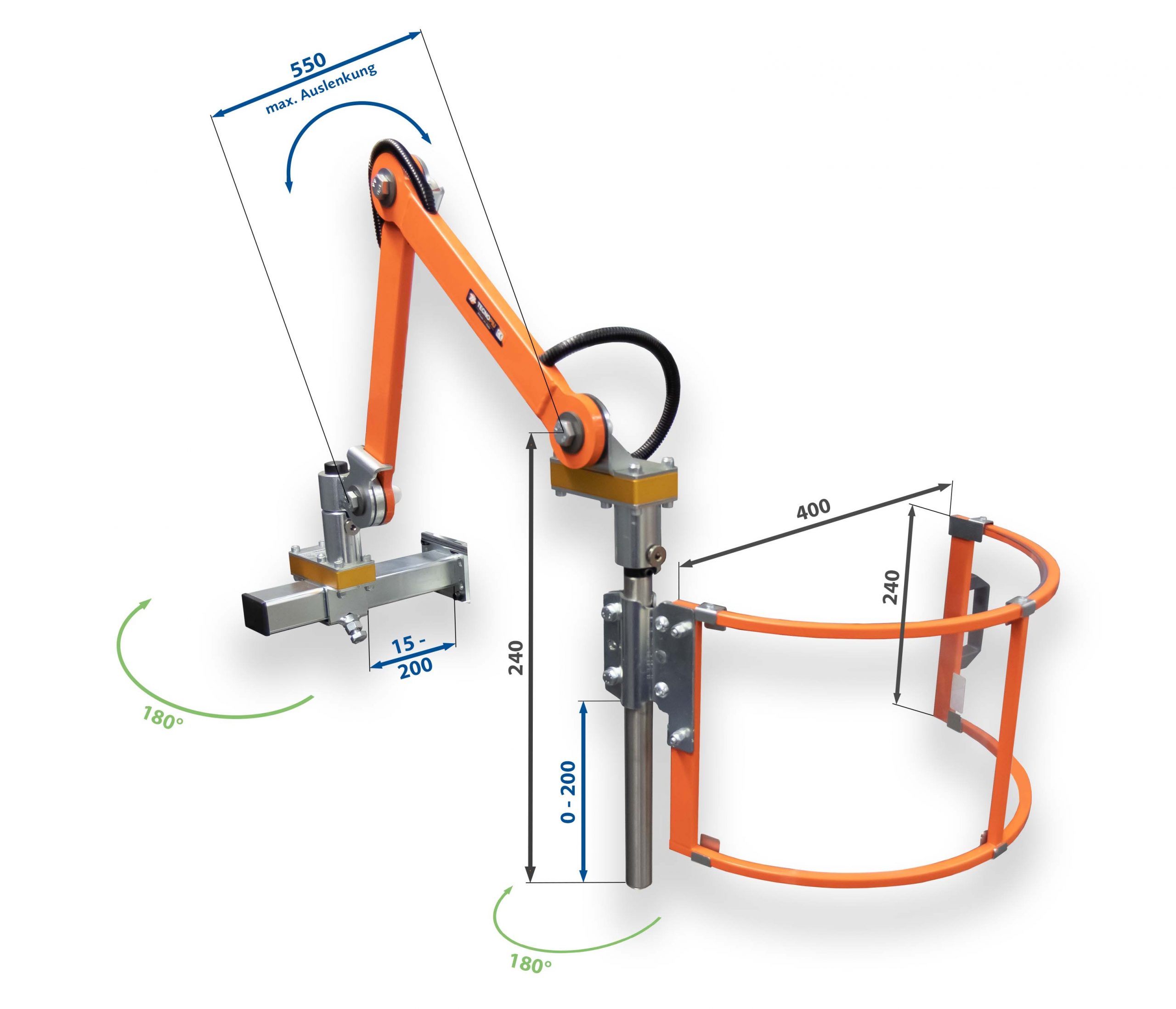

Protective pane, sensed swivelling	180°
Protective arm, sensed swivelling	180°
Semicircle diameter of protective pane	400 mm
Height of the pane	240 mm
Weight	10,2 kg
Usage	Deckel FP1 aktiv - FP4 aktiv FPS300M
