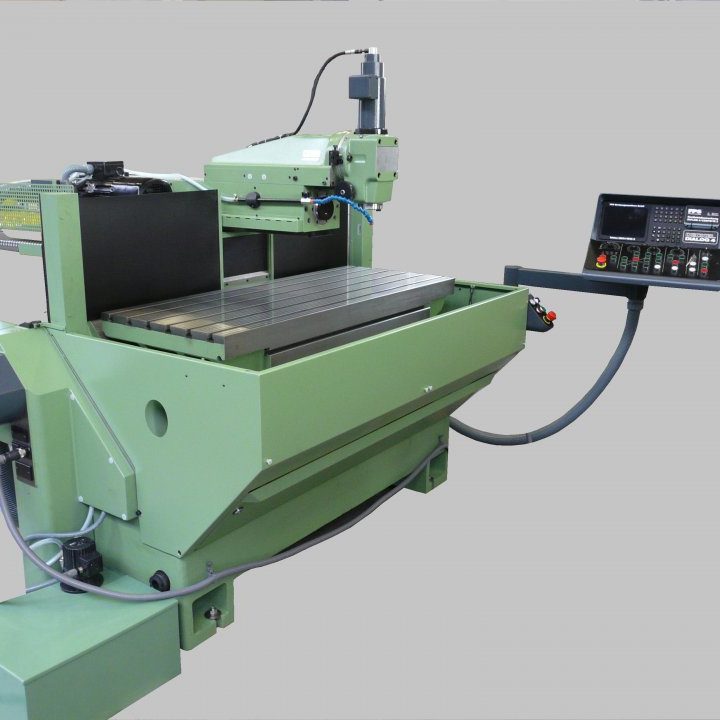

FP42 NC 2387 with DECKEL Dialog 4 control

Plano milling machine

Technical data

Item condition	Completely refurbished - as new
Item number	4740
Operation	CNC without control wheel

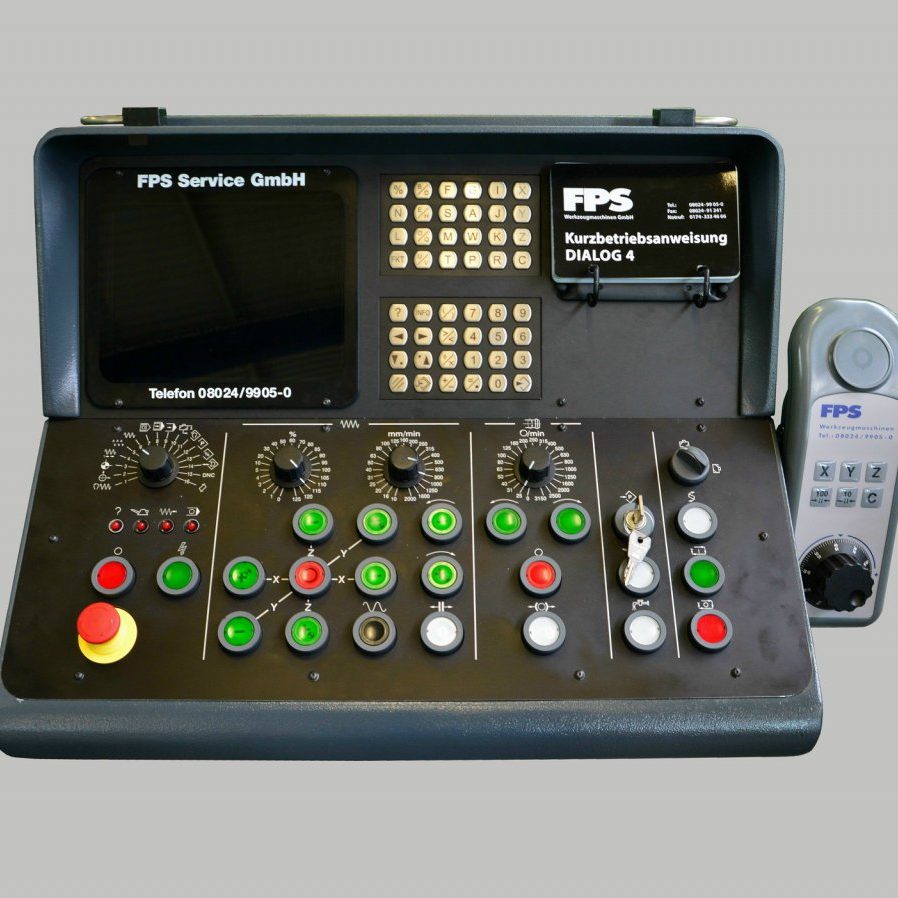

Control	DECKEL Dialog 4 CNC continuous path control
Speed	25–2500 rpm
Feed rate	2–3600 mm/min continuously variable
Rapid feed	4000 mm/min
Power	2.0/4.0 KW
Tail spindle	Vertical 80 mm extending tail spindles, SK40 with DIN 2080 or DIN 69872 clamping system
Axes	X/Y/Z 1170/500/370 mm
Angle table	Fixed table, 1400 x 555 mm, max. load 2000 kg
FPS - Standard	Completely refurbished machine, as new in terms of mechanics and electronics. The control system, drive package and drive motors were completely renewed and brought up to date in the course of the complete refurbishment.
Specifications	Vertical milling head is height adjustable Vertical and horizontal spindle Manually swivelling milling head (+/- 90°) Inclined bed machine Hydromechanical clamping system SK40 with DIN 2080 or DIN 69872 tightening bolts Programming: Deckel Dialog 11 - Dialog-guided programming with versatile machining cycles. Heidenhain TNC 320 - Heidenhain - Klartext or DIN / ISO programming Siemens 840D SL - User interface Siemens ShopMill and DIN / ISO programming.
Optional items	Electronic hand wheel Spray guard cabin Chip tray NC rotary table NC indexing head Special paint coating etc.
