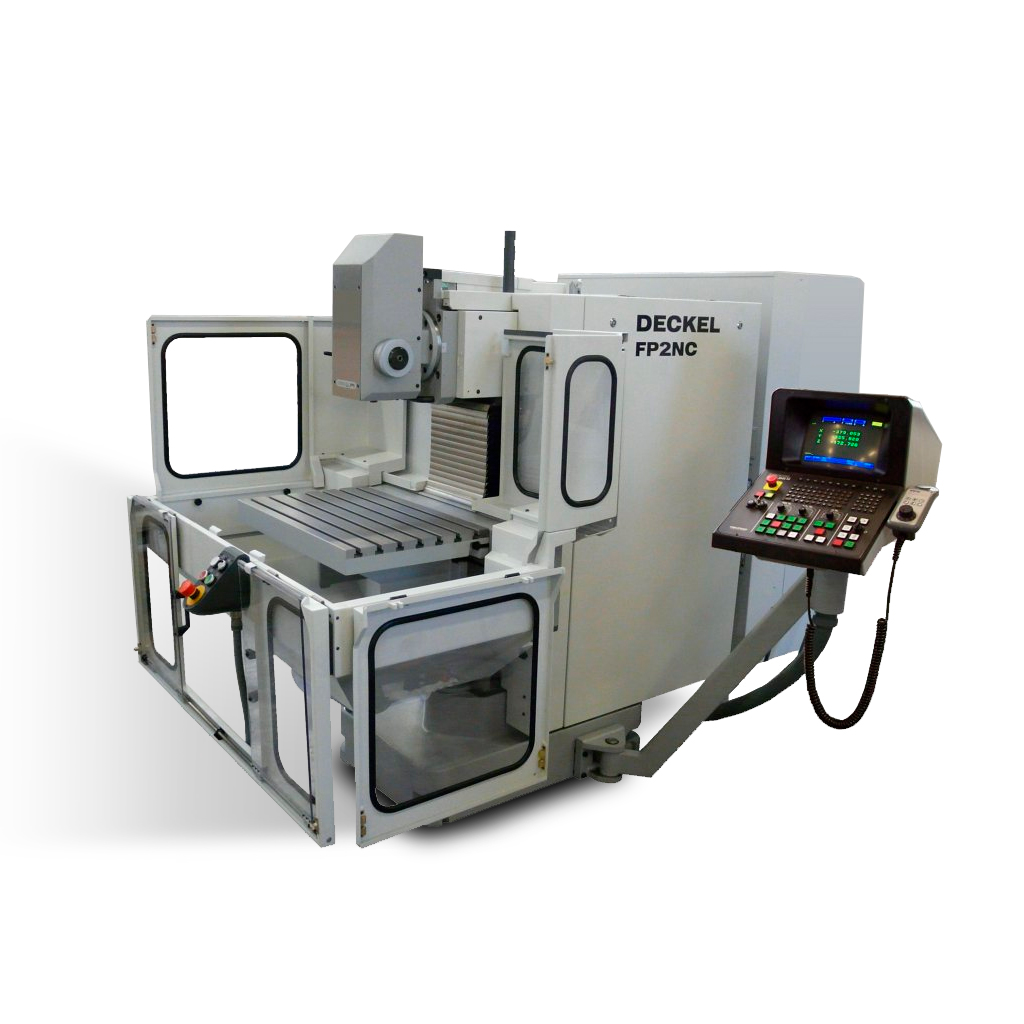

FP2 NC 2836 with DECKEL Dialog 11 control

Vertical cutting head as folding head

Technical data

Item condition	Completely overhauled - like new
Item number	2600
Operation	CNC without control wheel

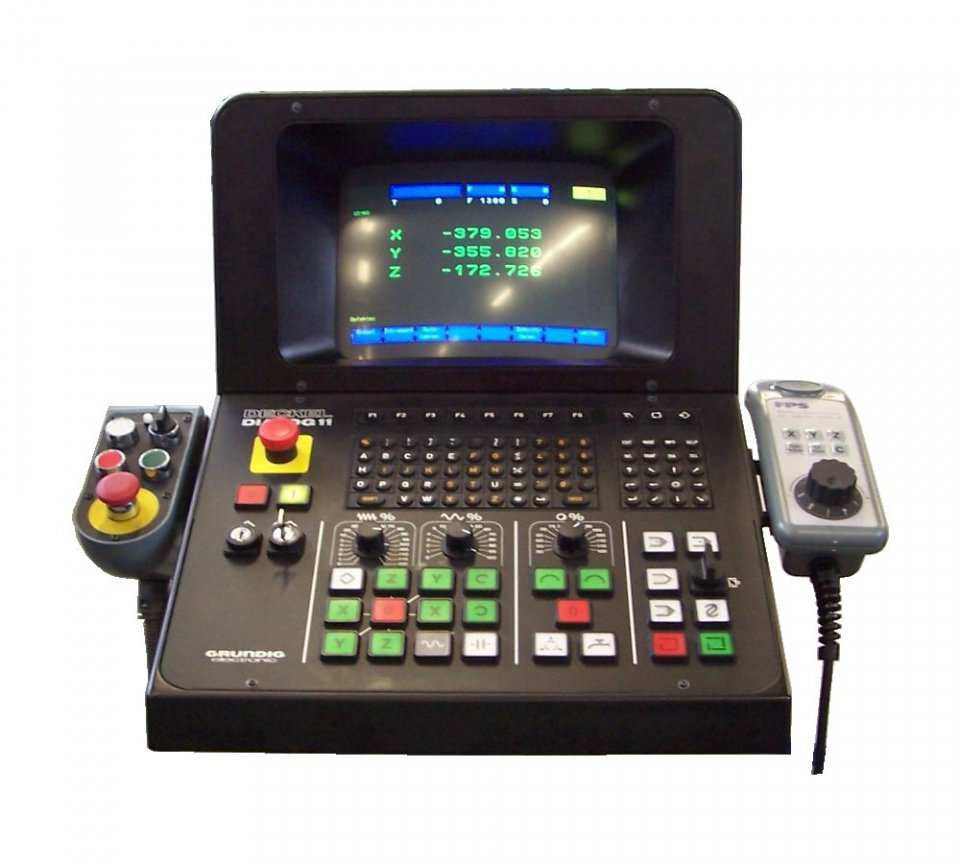

Control	DECKEL Dialog 11 CNC continuous path control
Speed	31.5–5000 rpm, 2-stage gearbox, continuously variable programming
Feed rate	2–6000 mm/min continuously variable
Rapid feed	6000 mm/min
Power	4.5 kW at 100% DC
Tail spindle	Vertical 80 mm extending tail spindles SK40 with DIN 2080 or DIN 698728 clamping system
Axes	X/Y/Z 300/300/400 mm
Angle table	Rigid angle table, 620 x 390 mm, max. load 250 kg
Specifications	SK40 hydromechanical clamping system with DIN 2080 or DIN 69872 tightening bolts Vertical cutting head as folding head 700 x 500 mm clamping area Vertical and horizontal spindle Manually rotating (+/- 90°) cutting head Programming: Dialog-based programming and cycles. Special: Completely overhauled machine, like new in terms of mechanisms and electronics. The control system, drive package and drive motors were completely renewed and brought up to the latest standard in the course of the complete overhaul.
Optional items	E control wheel Spray guard cabin Swarf tray NC rotary table NC indexing head Universal machining table Special paint coating etc.
