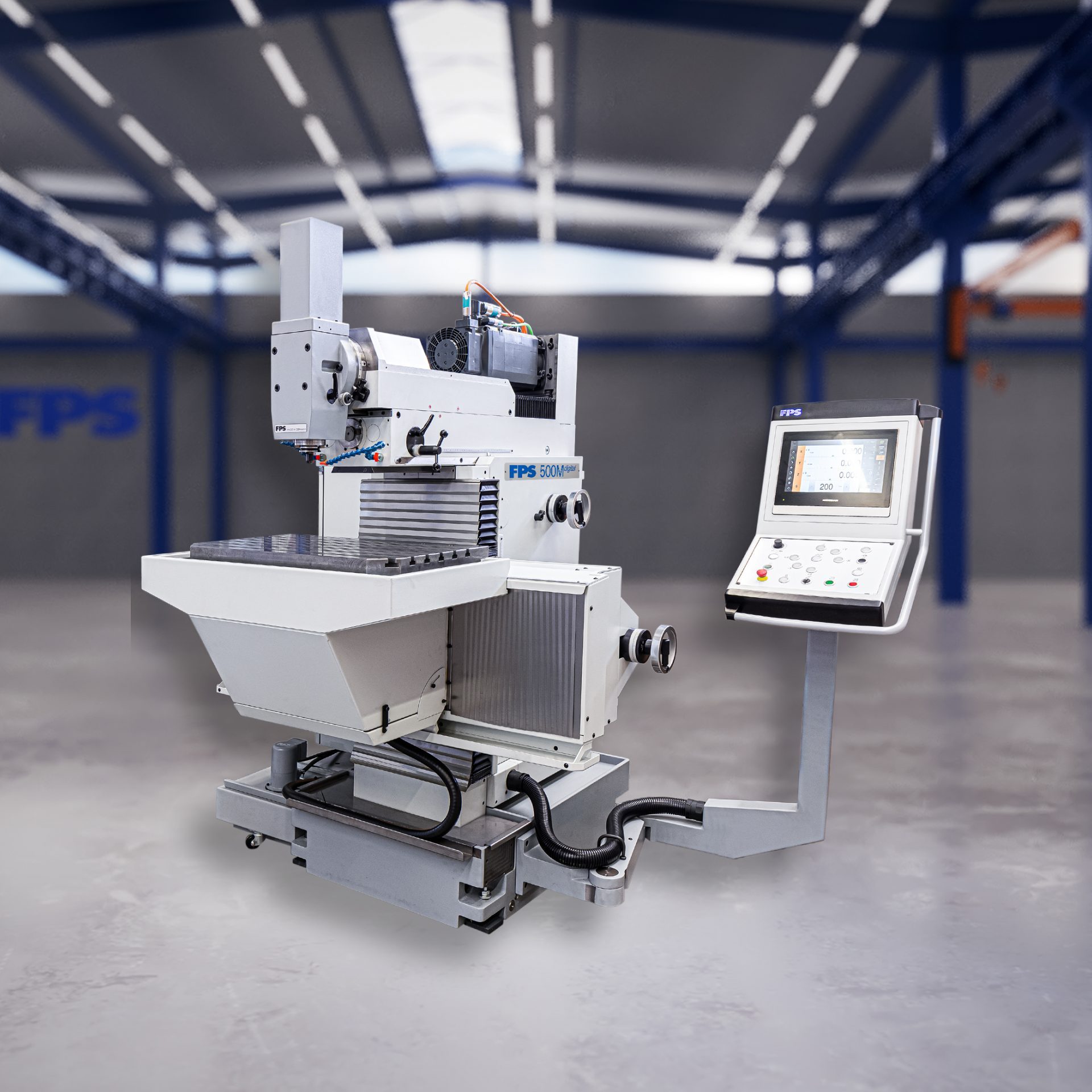

FPS 500M-digital

Technical data

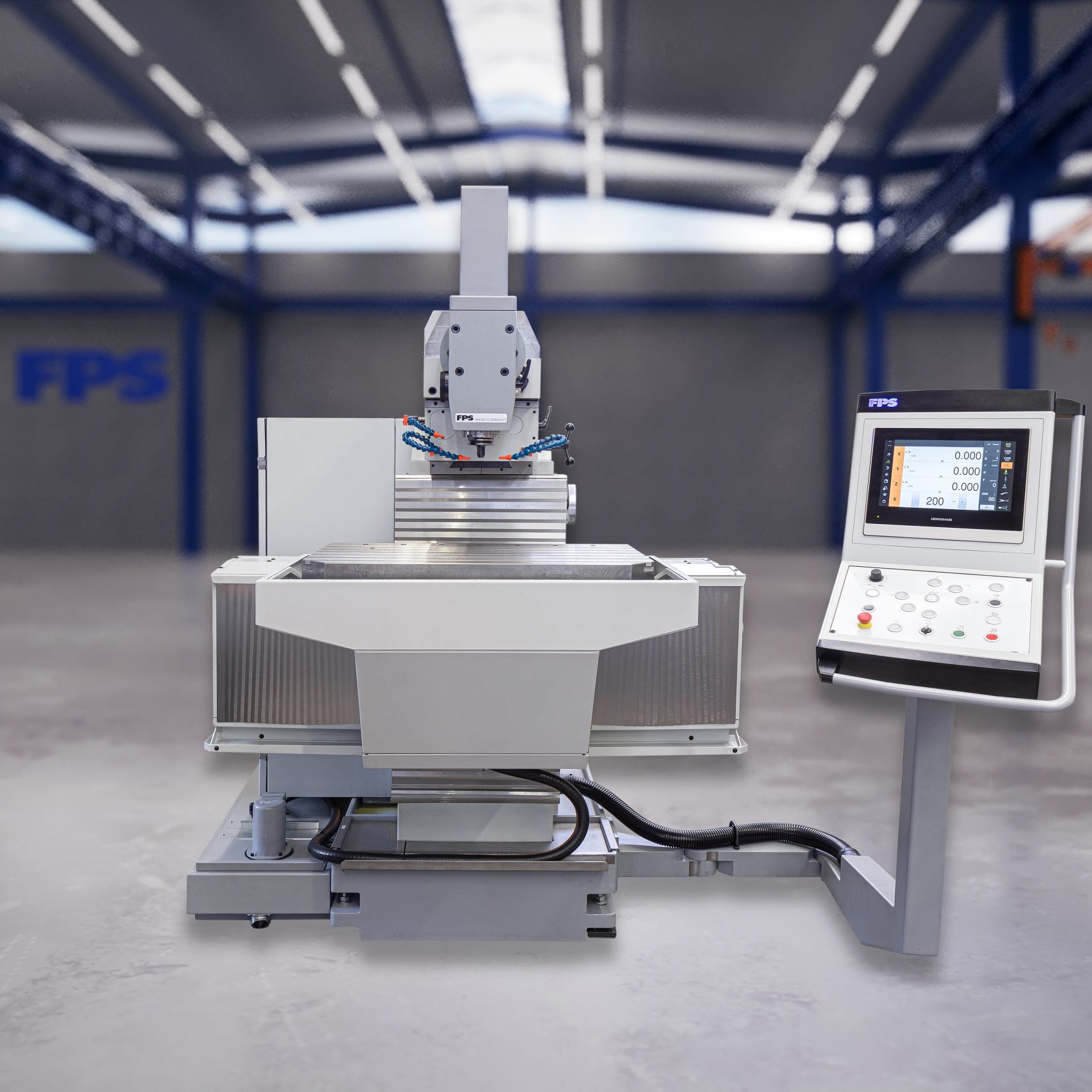

	FPS 500M-digital
Operating area
X-axis	500 mm
Y-axis	450 mm
Z-axis	400 mm

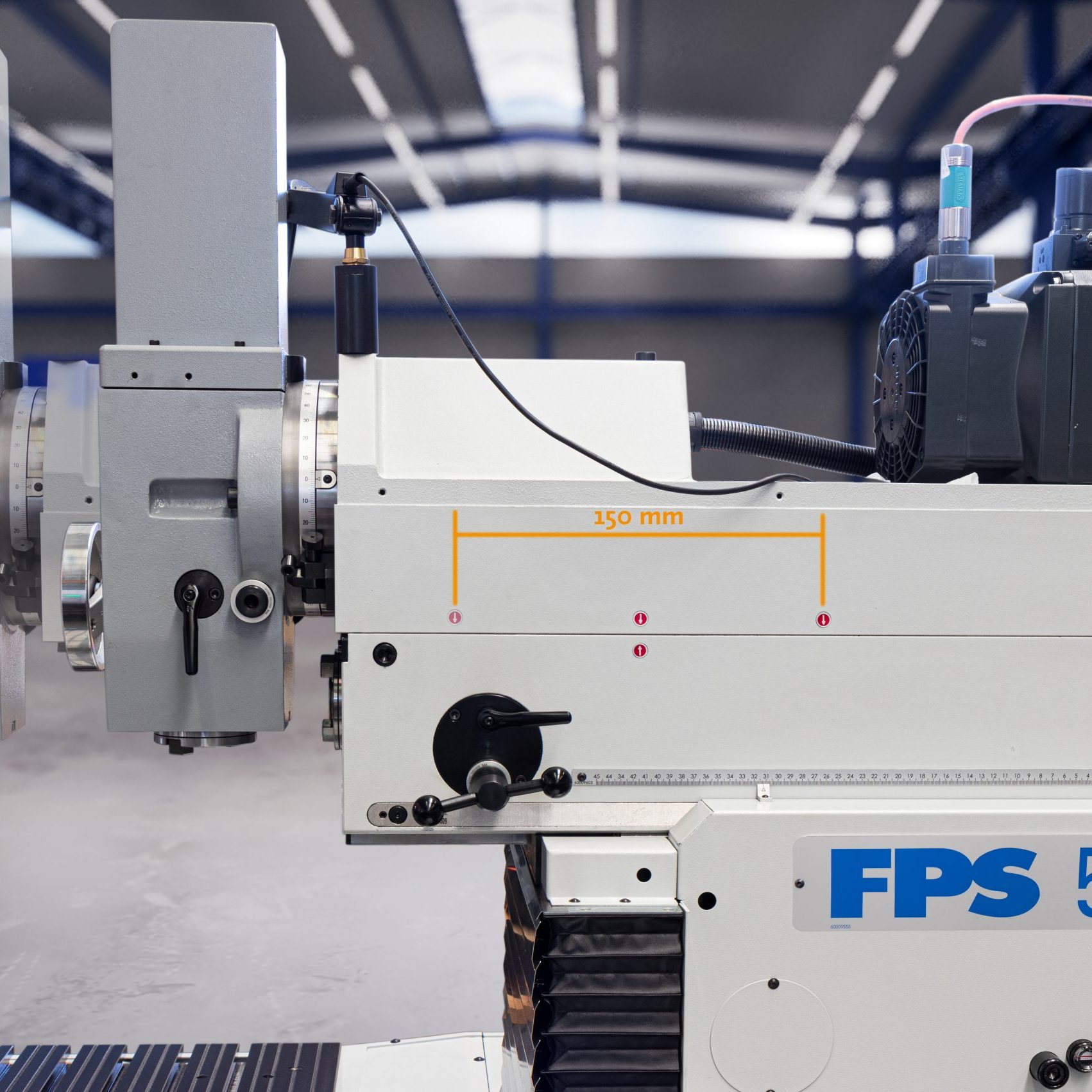

Cutting head can also be moved further along the Y-axis	150 mm

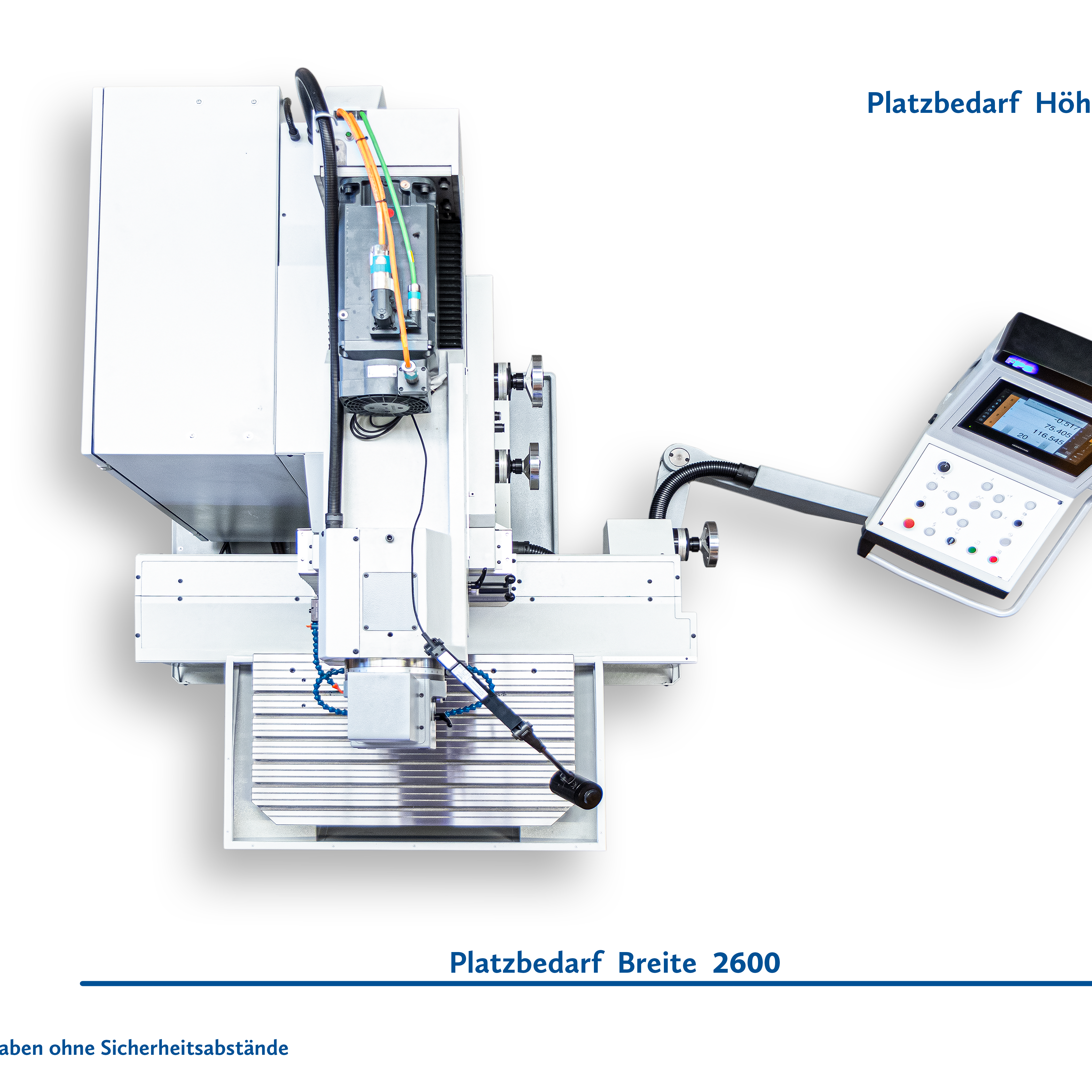

W x D x H space	2600 x 2100 x 2050 mm
Angle table
Table/clamping surface	630 x 470 mm
T-grooves: Number / width / distance	7 / 14H12 alignment groove 14H7 / 63 mm
Permitted load	350 kg
Operating spindle

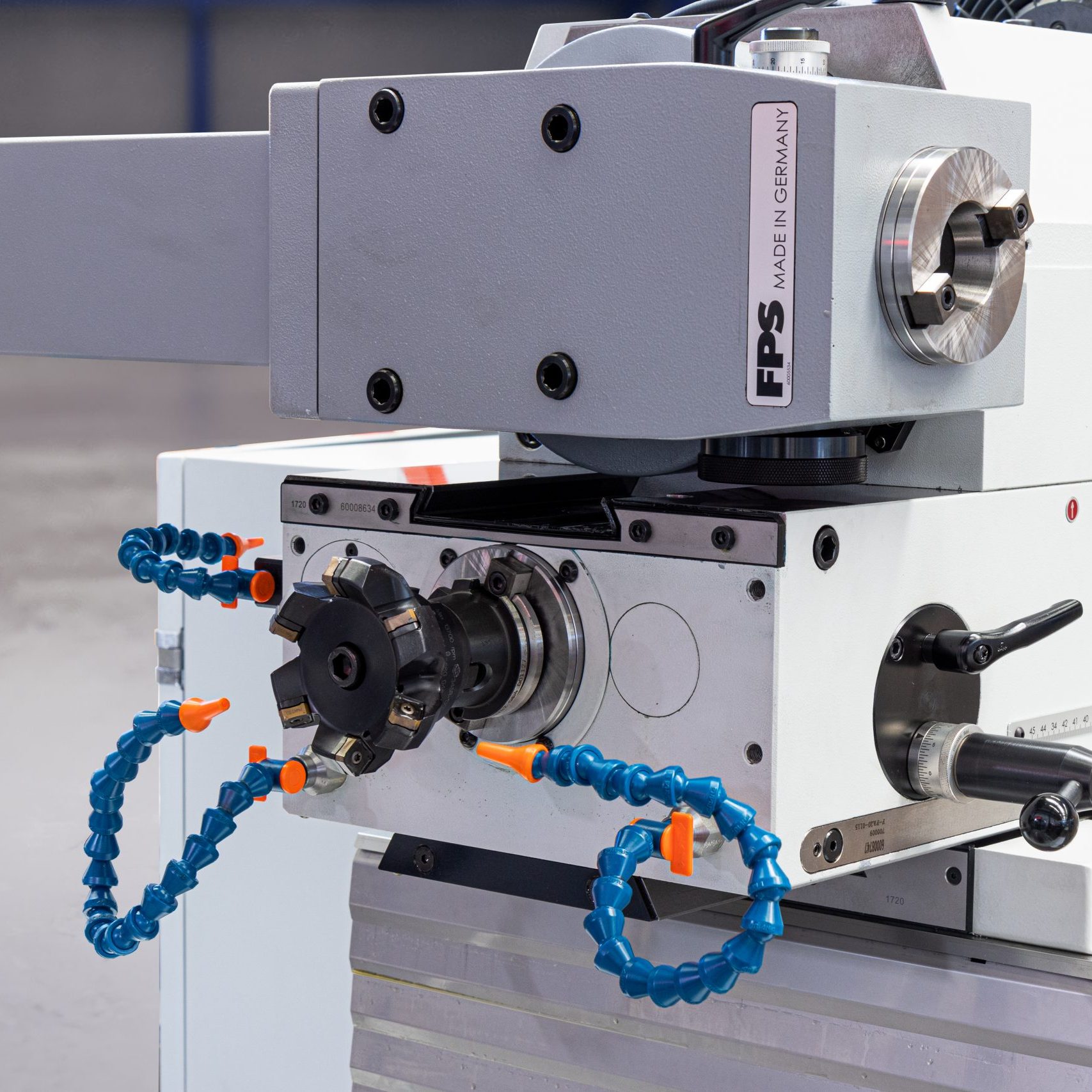

Vertical and horizontal	horizontal (optional)
Vertically extending as drill spindle, with clamp/stroke	approx. 80 mm

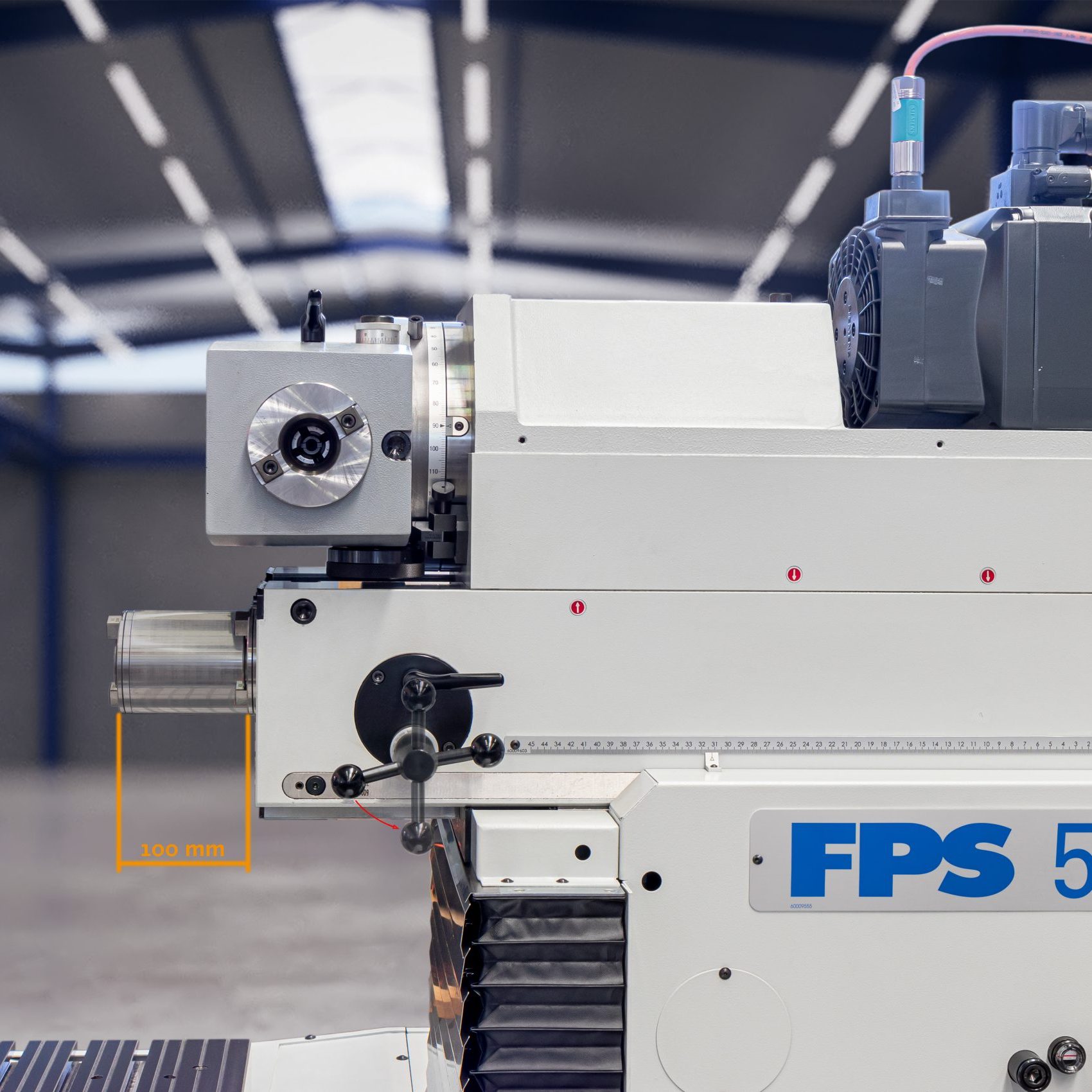

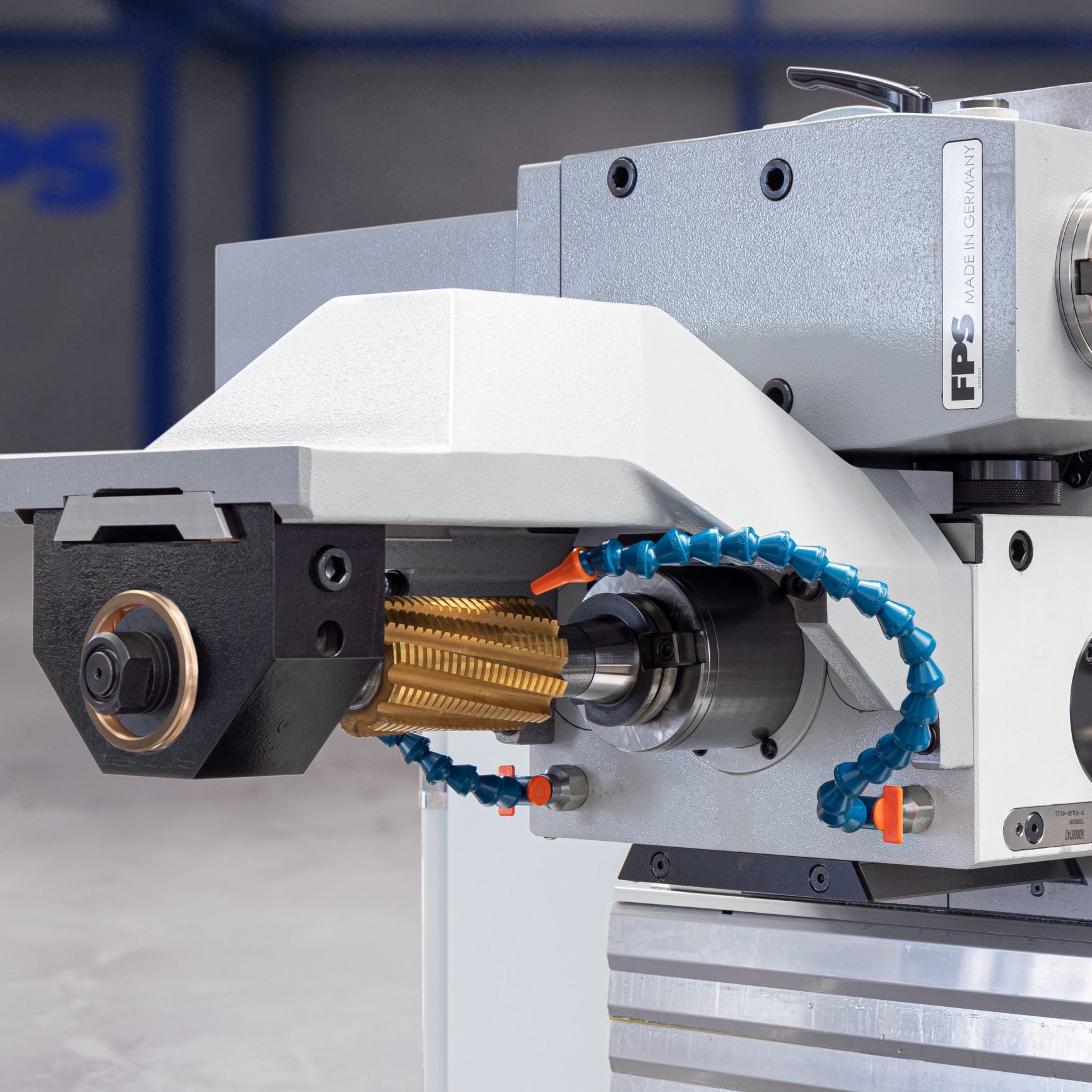

horzontally extending as drill spindle, (optional) with clamp/stroke	approx. 100 mm
Manually rotating cutting head	+/- 90°
Tool holder
with hydraulic tool clamping	ISO 40 DIN 69871
Tightening system
Hydraulic tightening system	DIN 69872 (standard) DIN 2080 (optional)
Main drive, three-phase-current brake motor
Power	14,1 kW
Torque	243 Nm
Spindle speed	20 to 5000 rpm (stepless adjustable)
Feed drive, digital drive
Feed rate, continuously variable	0 to 2000 mm/min
Rapid feed	5 m/min
Control wheel manual rotation	2.5 mm
Connection
Mains connection	3 x 400 VAC 50 Hz 25 A
Max. prelim. fuse rating	35 A
Mains configuration	TN-S connection type: Fixed connection
Control cabinet electronics
CE-compliant in line with current regulations of professional associations	BGVA 3 / DIN EN 60204-1
Weight
Total machine weight incl. machining table, cutting head, cabin and control cabinet	approx. 2300 kg
